SF21G - SUPER FAST RECTIFIER

SF21G Description

SF21G-SF28G Technical Data Data Sheet N1641, Rev.C SF21G-SF28G SUPER FAST RECTIFIER .

SF21G Features

* DO-15
* Super fast switching for high efficiency
* Low leakage current
* High forward surge capability
* Solder dip 260 °C, 40 s
* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
* This is a Pb
* Free Device
* All SMC parts are traceable to the wa

SF21G Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) und

📥 Download Datasheet

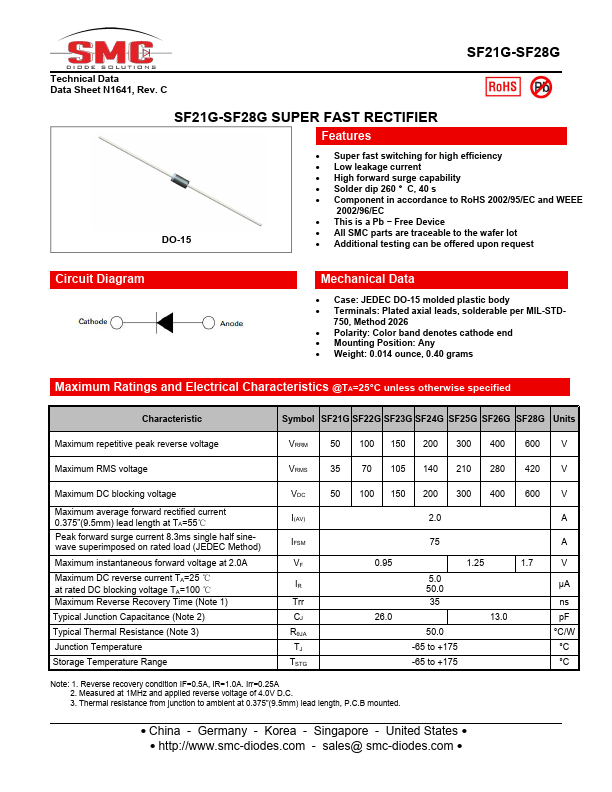

Preview of SF21G PDF

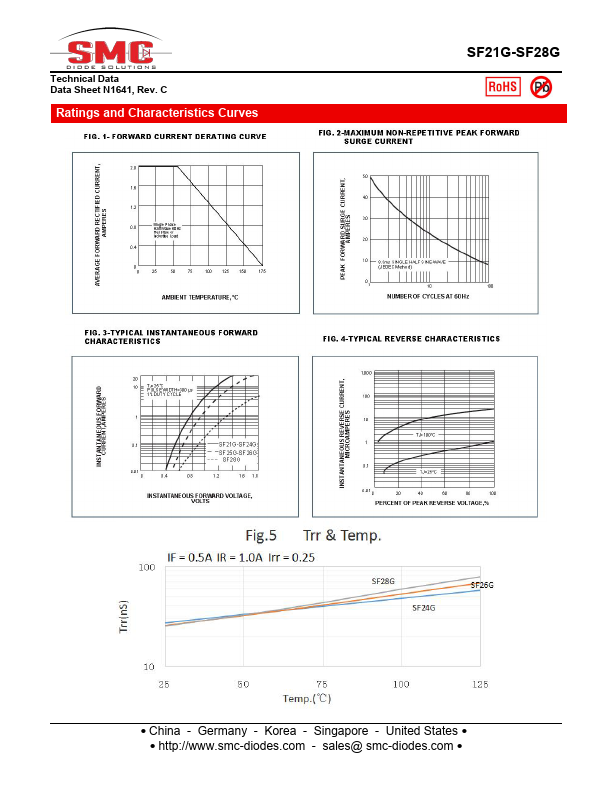

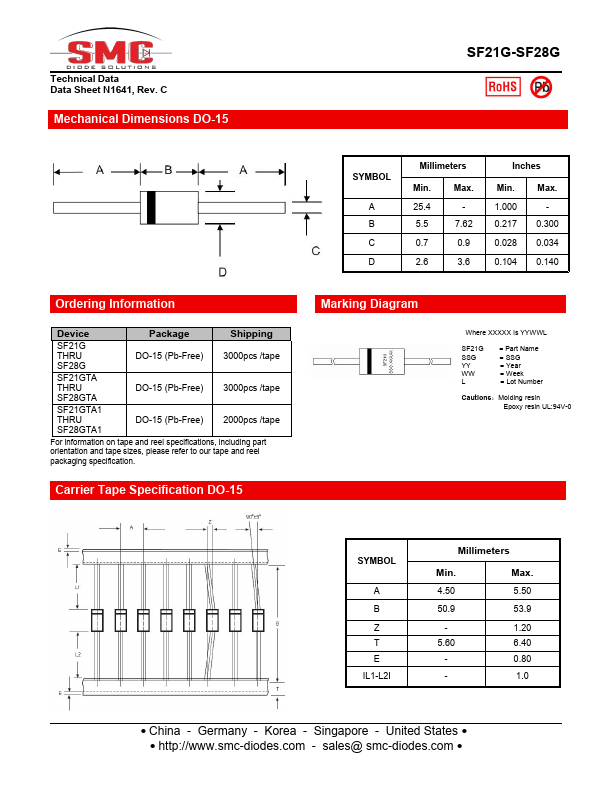

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SF21G
Manufacturer
SMC Diode
File Size
342.01 KB
Datasheet
SF21G-SMCDiode.pdf
Description
SUPER FAST RECTIFIER
