SK220A SCHOTTKY RECTIFIER

SK220A Description

Technical Data Data Sheet N0942, Rev.B SK220A SCHOTTKY RECTIFIER SK220A SMA .

SK220A Features

* Small foot print, surface mountable
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term
* reliability
* Green products in compliance the ROHS directive
* Terminals finish: Tin Lead-free plated
* This is a Hal

SK220A Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings(limiting values, TC =25°C unless otherwise specified) Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forwar

📥 Download Datasheet

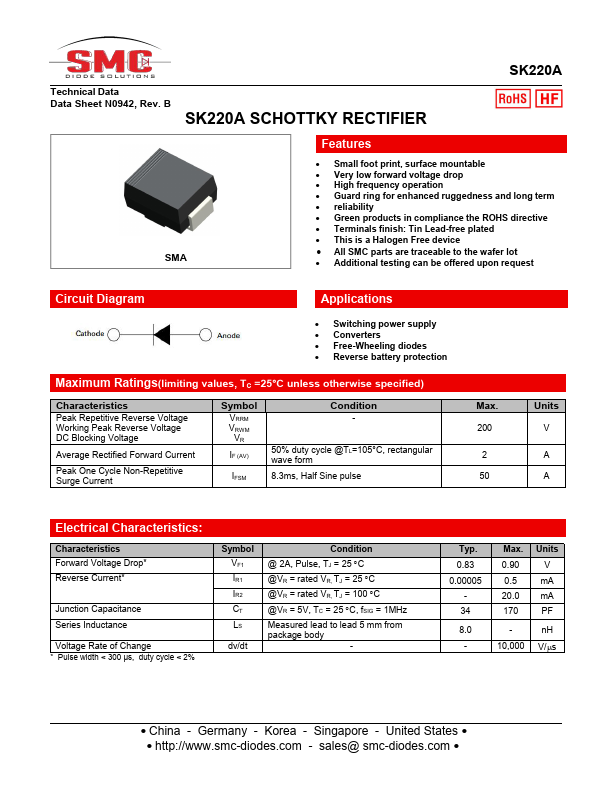

Preview of SK220A PDF

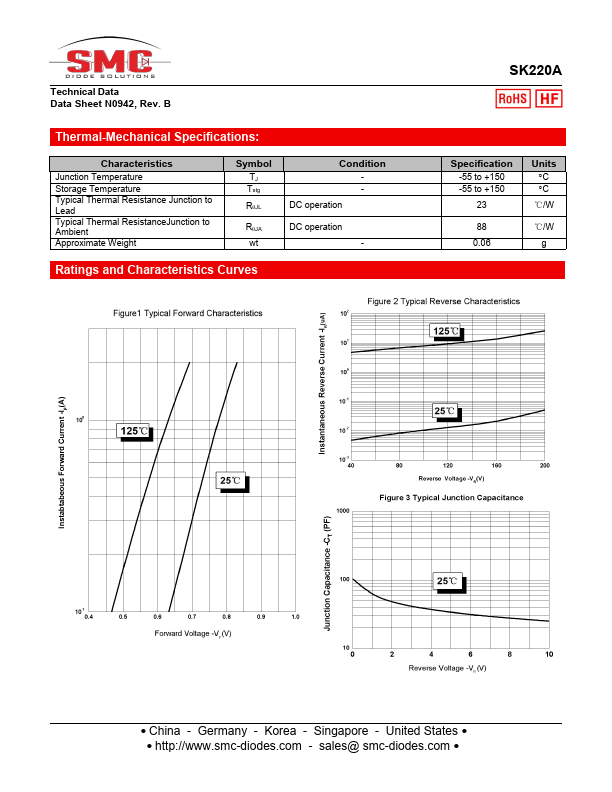

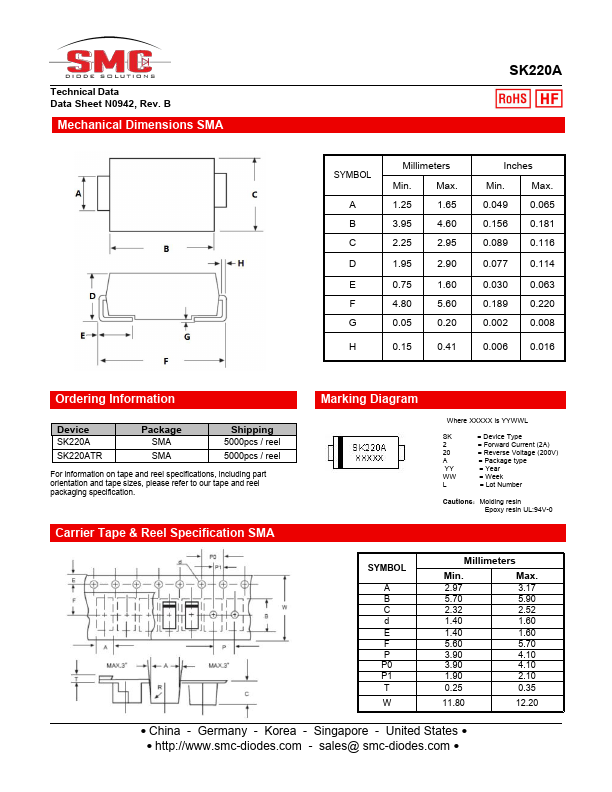

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK220A
Manufacturer
SMC Diode
File Size
302.10 KB
Datasheet
SK220A-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
