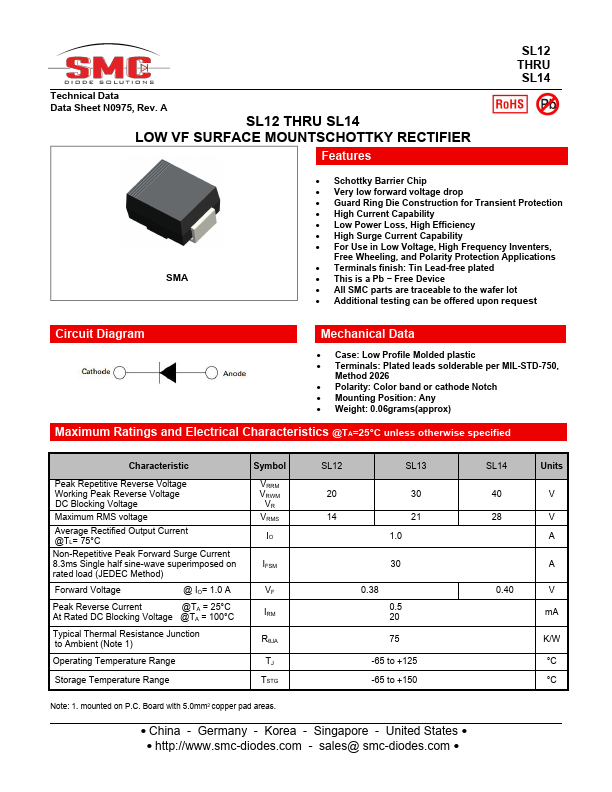

SL14, SL12 LOW VF SURFACE MOUNTSCHOTTKY RECTIFIER

SMC Diode

Description

Technical Data Data Sheet N0975, Rev.A SL12 THRU SL14 LOW VF SURFACE MOUNTSCHOTTKY RECTIFIER .

📥 Download Datasheet

SL14 Datasheet Preview — This datasheet PDF includes multiple part numbers: SL14, SL12. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SL14, SL12
Manufacturer: SMC Diode
File Size: 925.48 KB
Datasheet: SL12-SMCDiode.pdf
Description: LOW VF SURFACE MOUNTSCHOTTKY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SL14, SL12.
Please refer to the document for exact specifications by model.

Features

* SL12 THRU SL14 SMA
* Schottky Barrier Chip
* Very low forward voltage drop
* Guard Ring Die Construction for Transient Protection
* High Current Capability
* Low Power Loss, High Efficiency
* High Surge Current Capability
* For Use in Low Voltage, High Frequency Invent

Applications

* Terminals finish: Tin Lead-free plated
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot

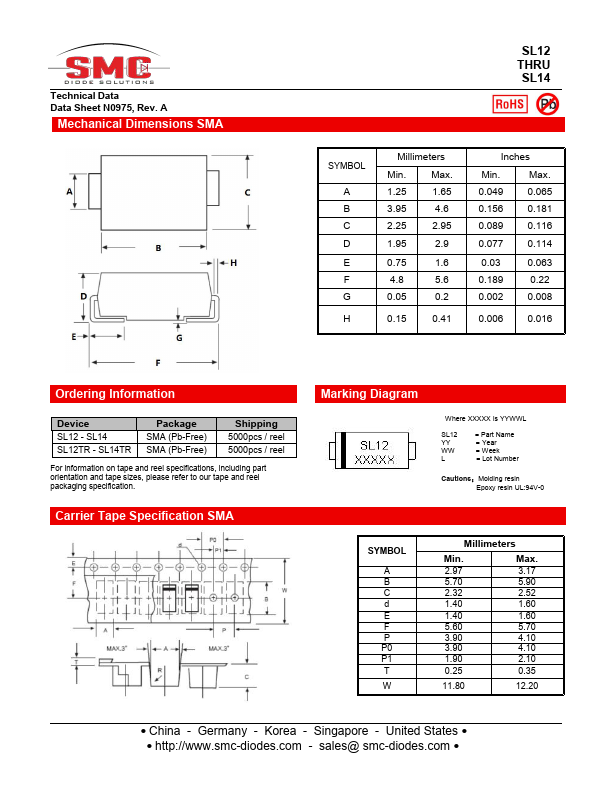

* Additional testing can be offered upon request Circuit Diagram Mechanical Data
* Case: Low Profile Molded plastic
* Terminals: Plated leads solder
