SM712 TVS Diode

SMC Diode

Description

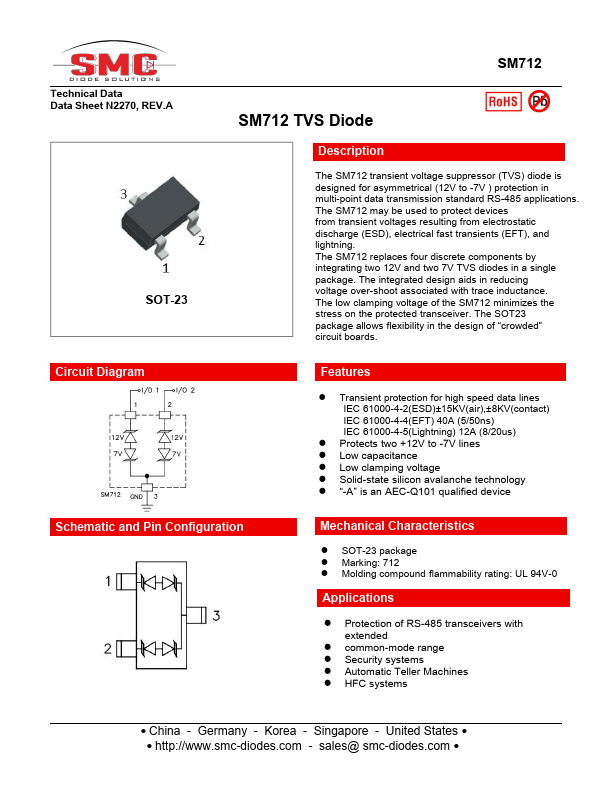

Technical Data Data Sheet N2270, REV.A SOT-23 SM712 SM712 TVS Diode .
The SM712 transient voltage suppressor (TVS) diode is designed for asymmetrical (12V to -7V ) protection in multi-point data transmission standard RS-.

📥 Download Datasheet

SM712 Datasheet Preview — Preview of SM712 PDF

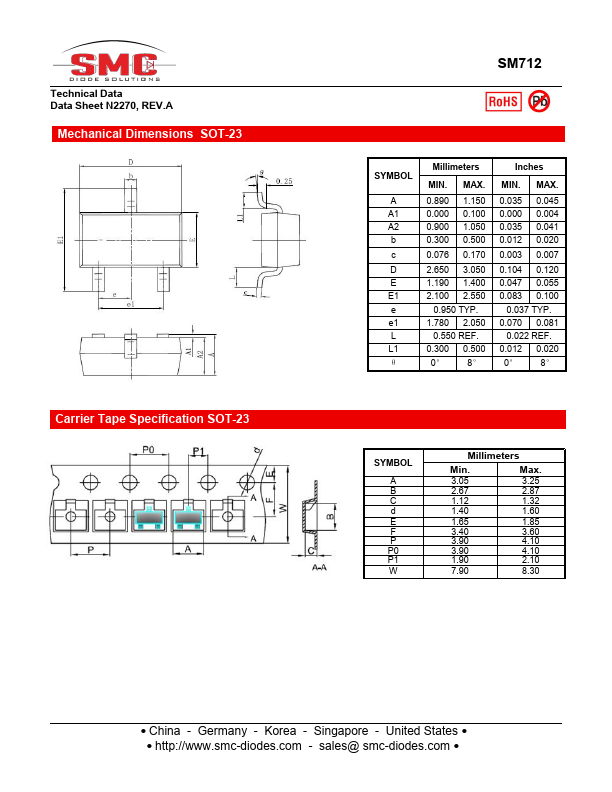

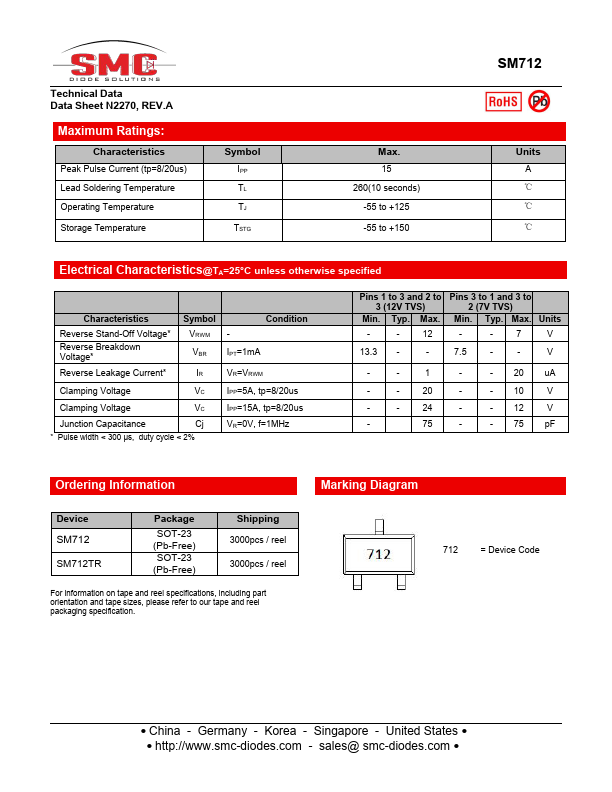

Datasheet Specifications

Part number: SM712
Manufacturer: SMC Diode
File Size: 195.14 KB
Datasheet: SM712-SMCDiode.pdf
Description: TVS Diode

Features

* Transient protection for high speed data lines IEC 61000-4-2(ESD)±15KV(air),±8KV(contact) IEC 61000-4-4(EFT) 40A (5/50ns) IEC 61000-4-5(Lightning) 12A (8/20us)
* Protects two +12V to -7V lines
* Low capacitance
* Low clamping voltage
* Solid-state silicon avalanche technology

Applications

* The SM712 may be used to protect devices from transient voltages resulting from electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. The SM712 replaces four discrete components by integrating two 12V and two 7V TVS diodes in a single package. The integrated design aids in
