ST20200 SCHOTTKY RECTIFIER

ST20200 Description

Technical Data Data Sheet N1435, Rev.A ST20200 STB20200 STF20200 ST20200/STB20200/STF20200 SCHOTTKY RECTIFIER Applications * Switching power s.

ST20200 Features

* 150 °C TJ operation
* Ultralow forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Terminals finish: Tin Lead-free plated
* Trench MOS Schottky technology
* This i

ST20200 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes

📥 Download Datasheet

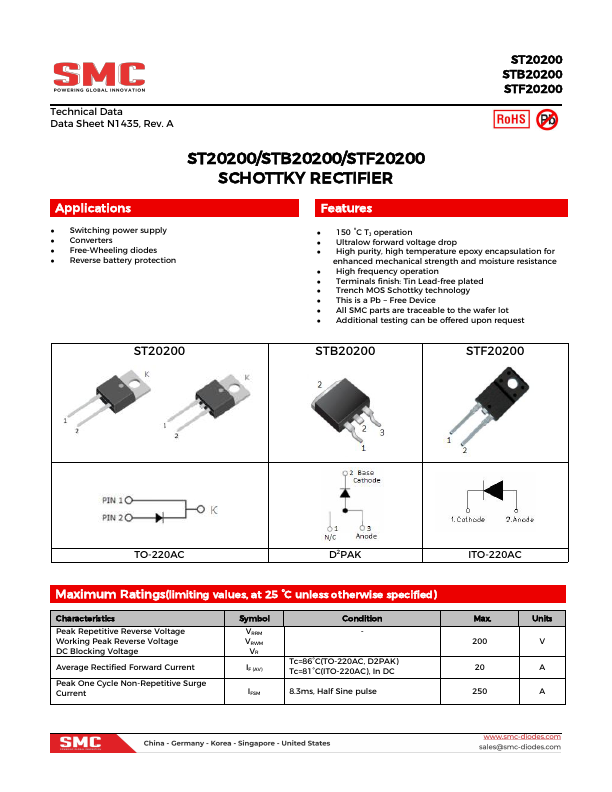

Preview of ST20200 PDF

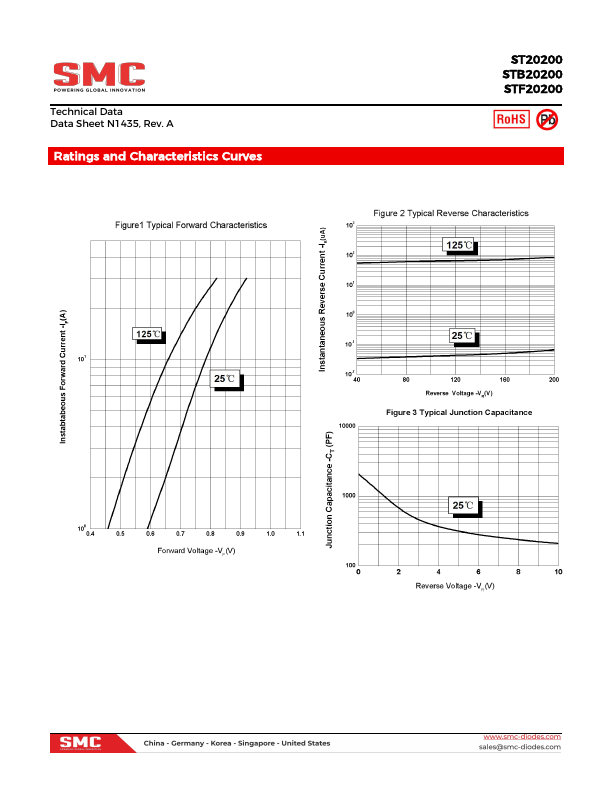

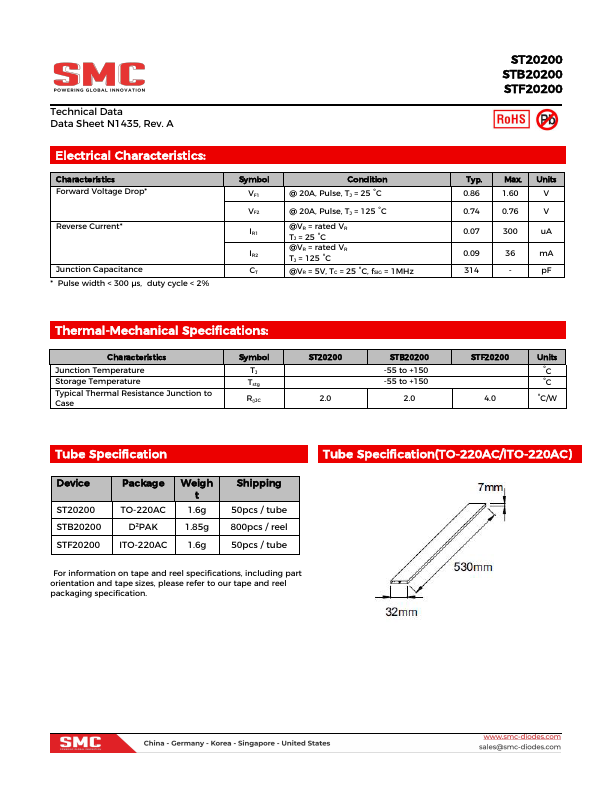

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST20200
Manufacturer
SMC Diode
File Size
1.52 MB
Datasheet
ST20200-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
