ST30120C - SCHOTTKY RECTIFIER

Datasheet Summary

Features

  • 150 C TJ operation.
  • Center tap configuration.
  • Ultralow forward voltage drop.
  • High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
  • High frequency operation.
  • Guard ring for enhanced ruggedness and long term reliability.
  • Trench MOS Schottky technology.
  • This is a Pb.
  • Free Device.
  • All SMC parts are traceable to the wafer lot.
  • Additional testing can be offered upon request ST30120C STB.

📥 Download Datasheet

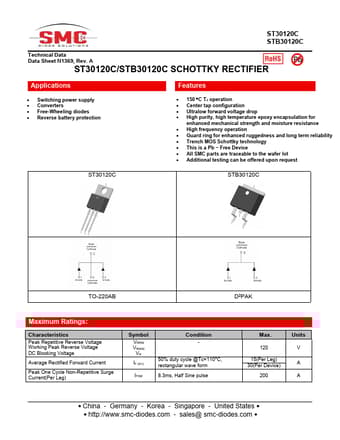

Datasheet preview – ST30120C

Datasheet Details

Part number ST30120C
Manufacturer SMC Diode
File Size 559.85 KB
Description SCHOTTKY RECTIFIER
Datasheet download datasheet ST30120C Datasheet
Additional preview pages of the ST30120C datasheet.
