ST5100 SCHOTTKY RECTIFIER

ST5100 Description

Technical Data Data Sheet N1052, Rev.B ST5100 STB5100 STD5100 STF5100 ST5100/STB5100/STF5100/STD5100 SCHOTTKY RECTIFIER Applications * Switchi.

ST5100 Features

* 150 °C TJ operation
* Center tap configuration
* Ultralow forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliabil

ST5100 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes

📥 Download Datasheet

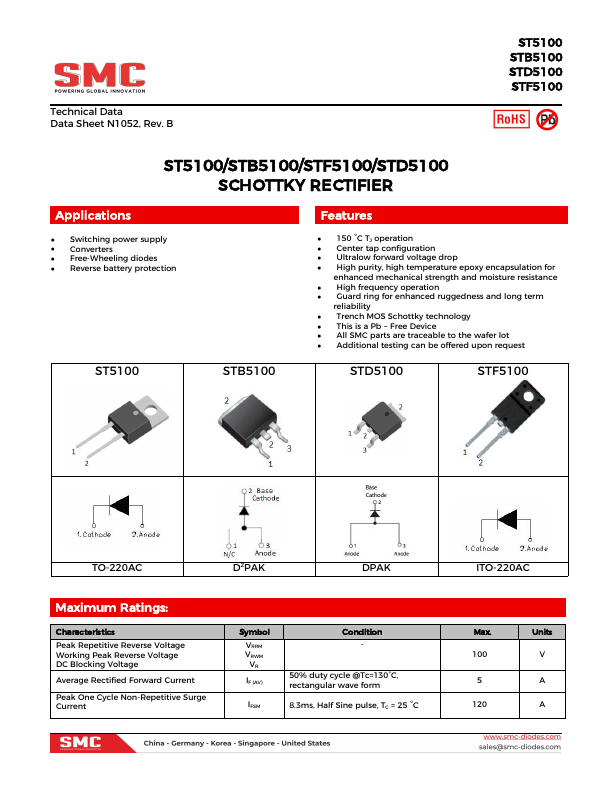

Preview of ST5100 PDF

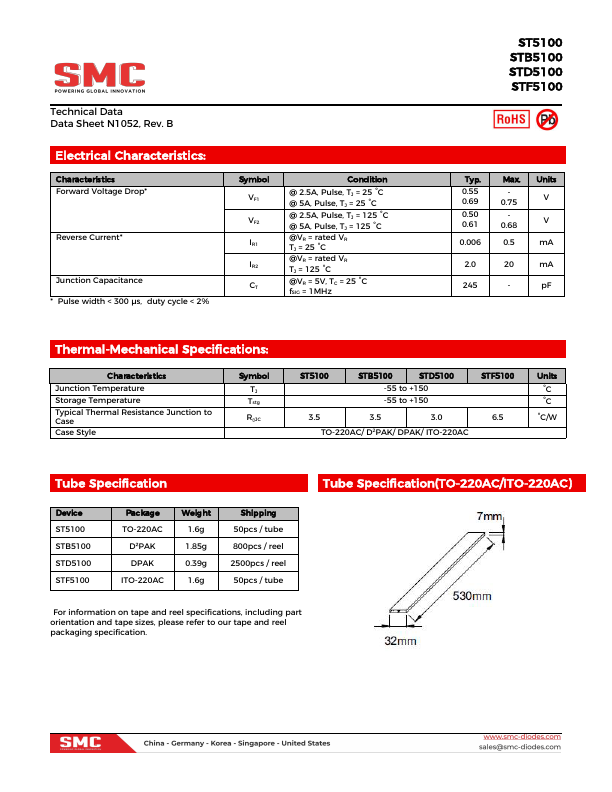

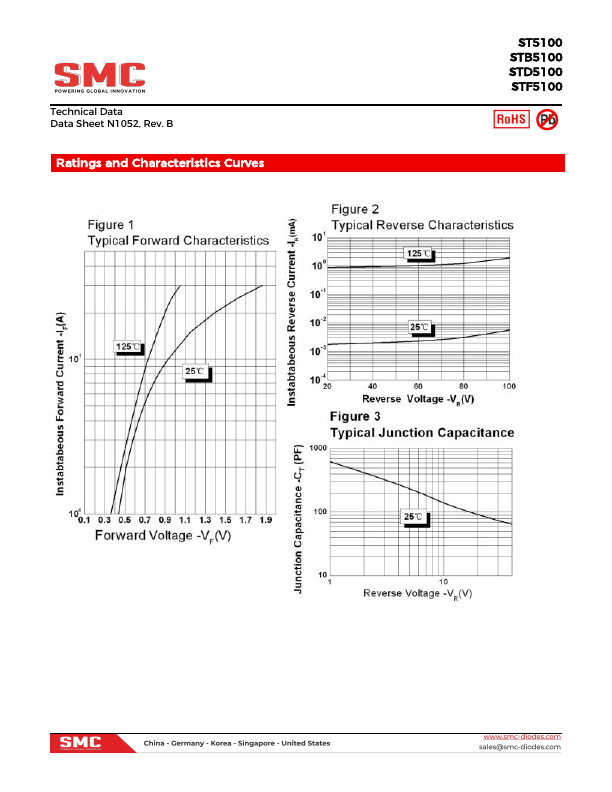

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST5100
Manufacturer
SMC Diode
File Size
1.56 MB
Datasheet
ST5100-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
