STB20200 - SCHOTTKY RECTIFIER

Product Overview

SMC Diode

📥 Download Datasheet

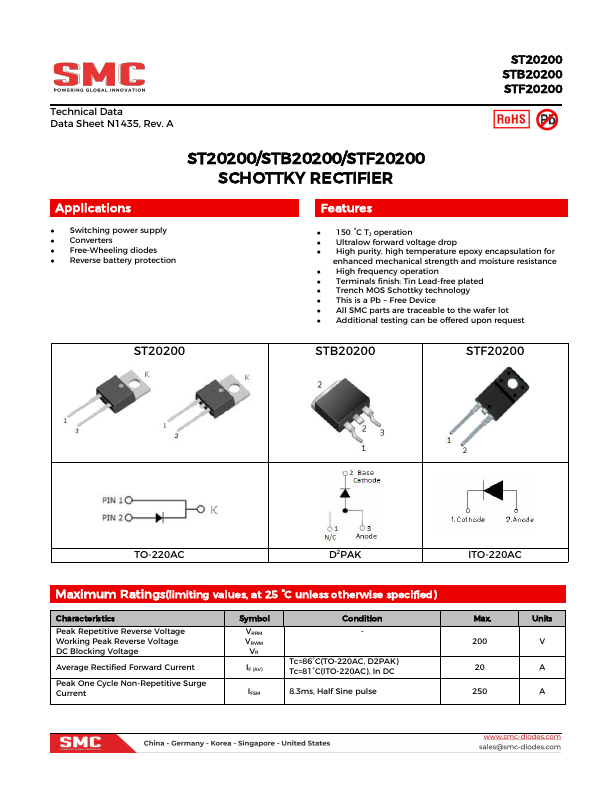

STB20200 SCHOTTKY RECTIFIER by SMC Diode - Datasheet Preview — Datasheet preview – STB20200

Datasheet Details

Part number	STB20200
Manufacturer	SMC Diode
File Size	1.52 MB
Description	SCHOTTKY RECTIFIER
Datasheet	STB20200 Datasheet

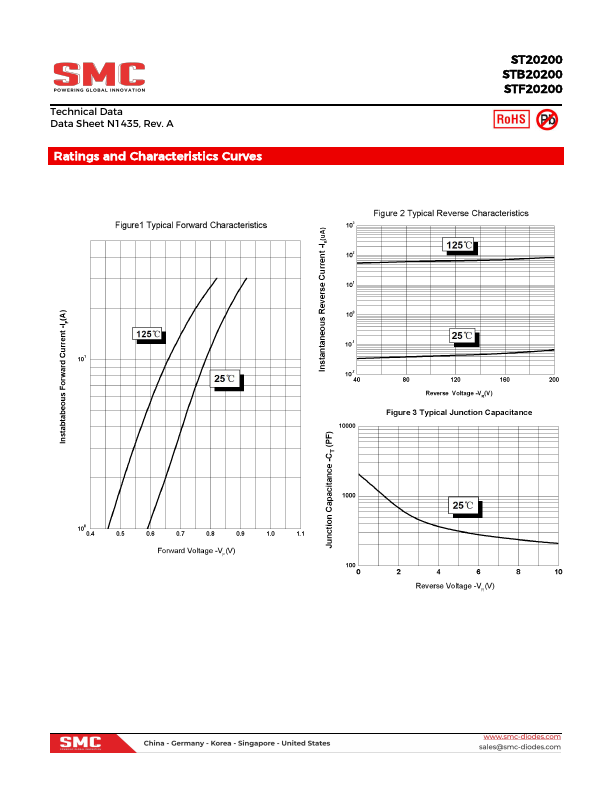

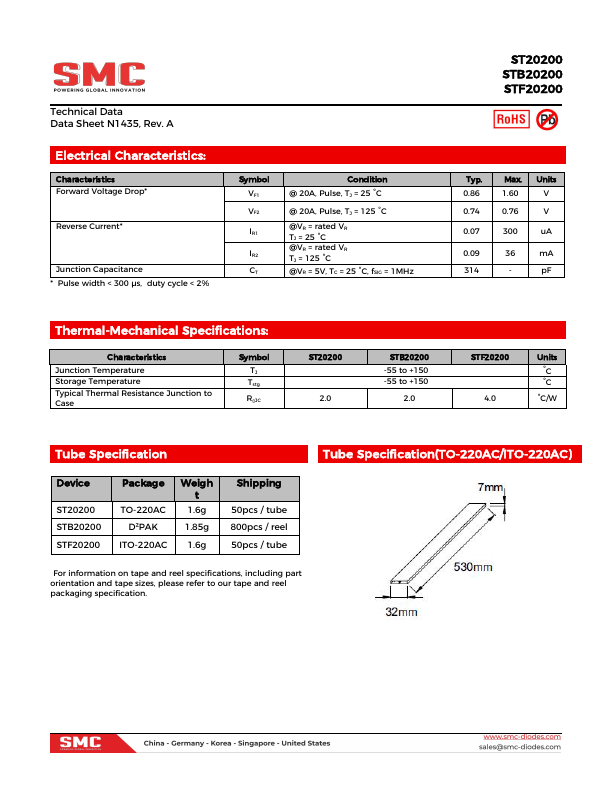

Additional preview pages of the STB20200 datasheet.

Product details

Features

150 °C TJ operation.
Ultralow forward voltage drop.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
High frequency operation.
Terminals finish: Tin Lead-free plated.
Trench MOS Schottky technology.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request ST20200 STB20200 STF20200 TO-220AC D2PAK ITO-220AC Maximum R.
