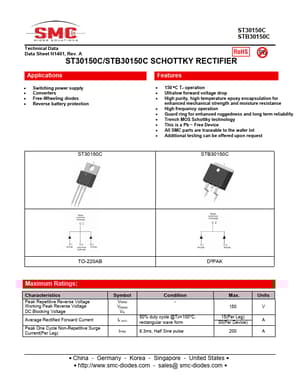

STB30150C
Features
- 150 C TJ operation
- Ultralow forward voltage drop
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- High frequency operation
- Guard ring for enhanced ruggedness and long term reliability
- Trench MOS Schottky technology
- This is a Pb
- Free Device
- All SMC parts are traceable to the wafer lot
- Additional testing can be offered upon request
ST30150C
TO-220AB
D2PAK
Maximum Ratings:
Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge Current(Per Leg)
Symbol VRRM VRWM VR
IF (AV)
IFSM
Condition
- 50% duty cycle @Tc=100°C, rectangular wave form 8.3ms, Half Sine pulse
Max.
15(Per Leg) 30(Per Device)
Units V A A
- China
- Germany
- Korea
- Singapore
- United States
- - http://.smc-diodes.
- sales@ smc-diodes.
- Technical Data Data Sheet N1401, Rev. A
Electrical...
