STB4045C SCHOTTKY RECTIFIER

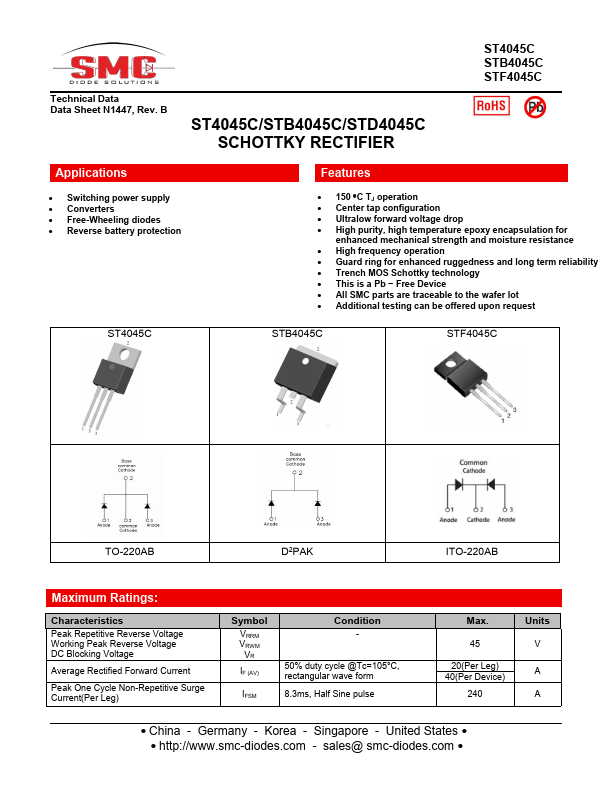

📥 Download Datasheet Datasheet Preview Page 1

Description

Technical Data Data Sheet N1447, Rev.B ST4045C/STB4045C/STD4045C SCHOTTKY RECTIFIER ST4045C STB4045C STF4045C Applications * Switching power s.

📥 Download Datasheet

Preview of STB4045C PDF

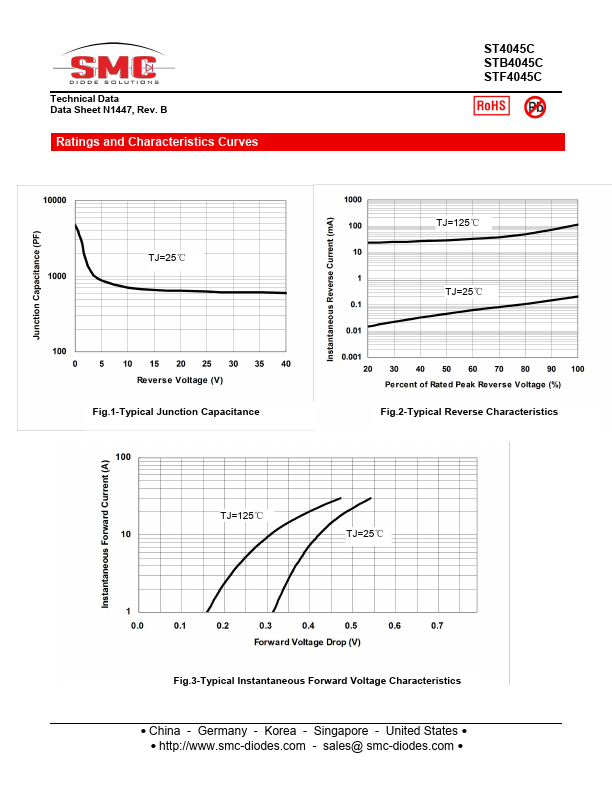

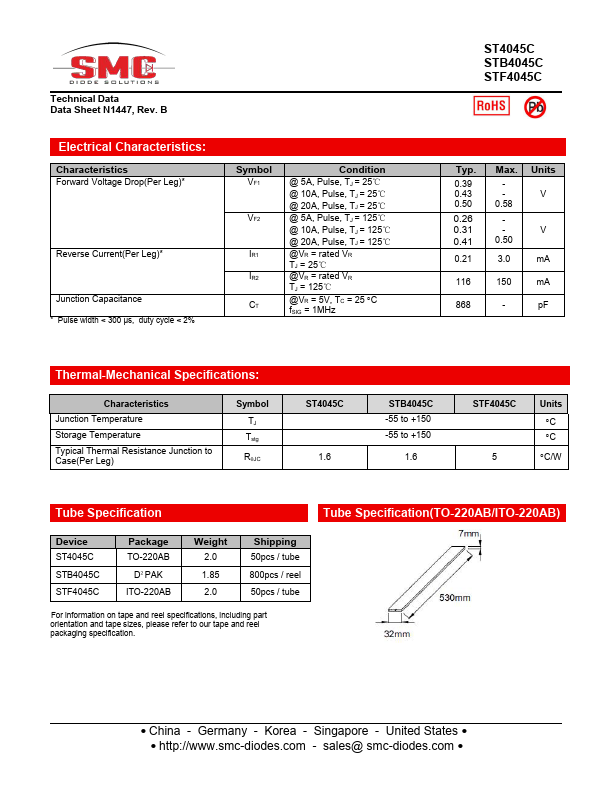

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STB4045C
Manufacturer
SMC Diode
File Size
0.97 MB
Datasheet
STB4045C-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER

Features

* 150 C TJ operation
* Center tap configuration
* Ultralow forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliabil

Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
