STB5100 - SCHOTTKY RECTIFIER

Product Overview

SMC Diode

📥 Download Datasheet

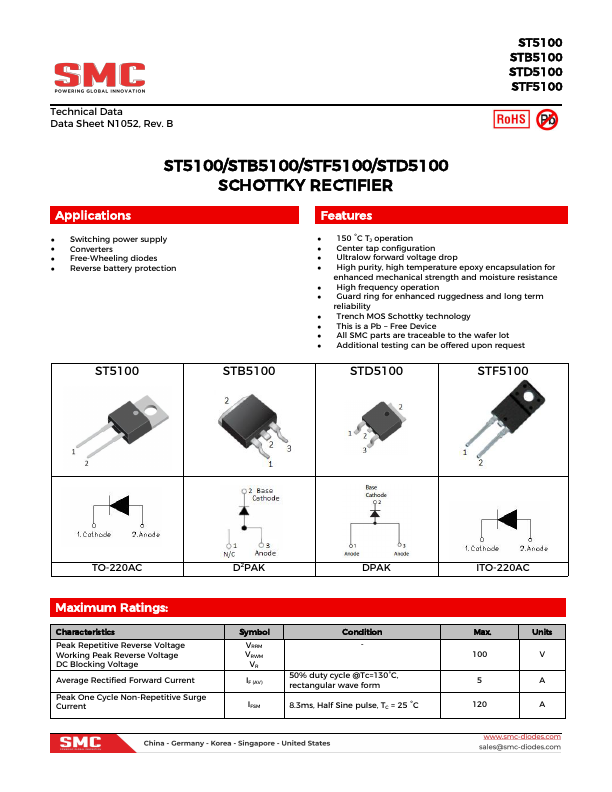

STB5100 SCHOTTKY RECTIFIER by SMC Diode - Datasheet Preview — Datasheet preview – STB5100

Datasheet Details

Part number	STB5100
Manufacturer	SMC Diode
File Size	1.56 MB
Description	SCHOTTKY RECTIFIER
Datasheet	STB5100 Datasheet

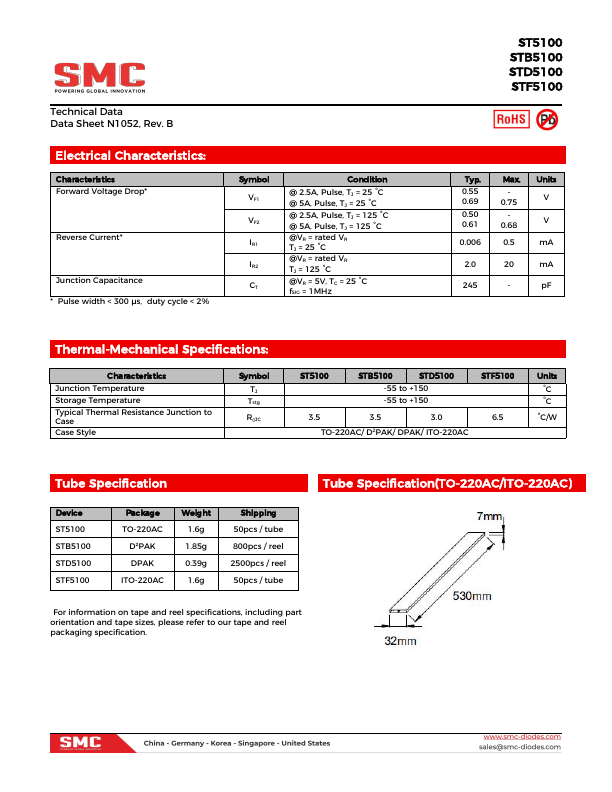

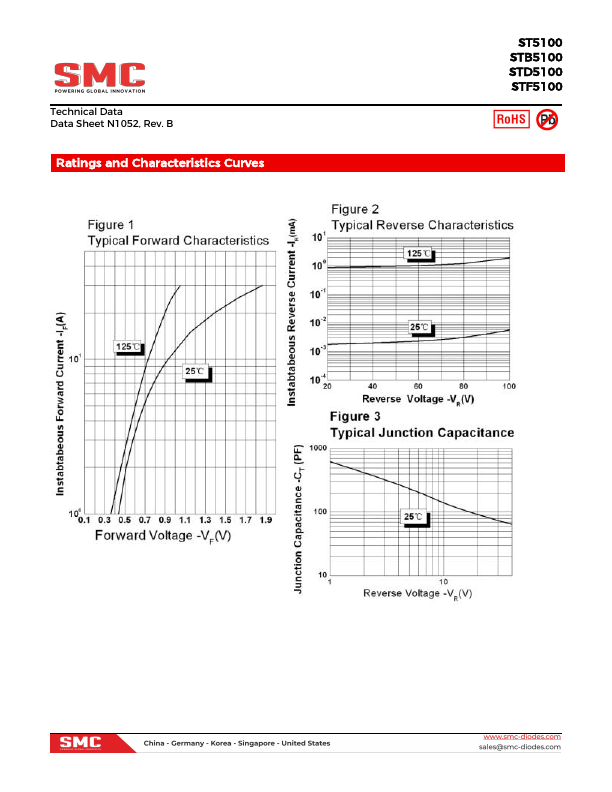

Additional preview pages of the STB5100 datasheet.

Product details

Features

150 °C TJ operation.
Center tap configuration.
Ultralow forward voltage drop.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
Trench MOS Schottky technology.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request STD5100 STF5.
