MUR1060CT - ULTRAFAST RECTIFIER

Product Overview

SMC

Part number	MUR1060CT
Manufacturer	SMC
File Size	190.42 KB
Description	ULTRAFAST RECTIFIER
Datasheet	MUR1060CT Datasheet

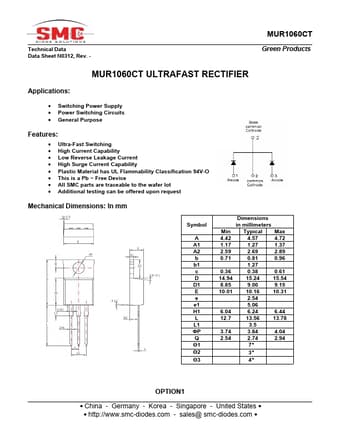

Additional preview pages of the MUR1060CT datasheet.

Ultra-Fast Switching.
High Current Capability.
Low Reverse Leakage Current.
High Surge Current Capability.
Plastic Material has UL Flammability Classification 94V-O.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Mechanical Dimensions: In mm Symbol A A1 A2 b b1 c D D1 E e e1 H1 L L1 ΦP Q Θ1 Θ2 Θ3 Dimensions in millimeters Min Typical Max 4.42 4.57 4.72 1.17 1.27 1.37 2.5.
