SY9520 2 position single

5 Port Solenoid Valve Series SY3000/5000/7000/9000 Rubber Seal SJ SY SV SYJ SZ VP4 S0700 VQ VQ4 VQ5 VQC VQZ SQ VFS VFR VQ7 Improved pilot valve Pilot valve cover is stronger using stainless steel. Mounting thread is also reinforced from size M1.7 to M2. ț Flow Characteristics Series C [dm3/(s bar)] 1.1 2.8 4.5 10 Cover (stainless steel) SY3000 SY5000 SY7000 SY9000 Flow characteristics b 0.28 0.37 0.28 0.29 Cv 0.29 0.90 1.4 2.5 101 Cylinder Speed Chart Body Ported Average speed (mm/s).

SY9520 Features

* ifold stations can be increased or decreased. P. 208 Type Stacking type Flat ribbon cable í Manifold stations

SY3-220.pdf

This datasheet PDF includes multiple part numbers: SY9520, SY3. Please refer to the document for exact specifications by model.

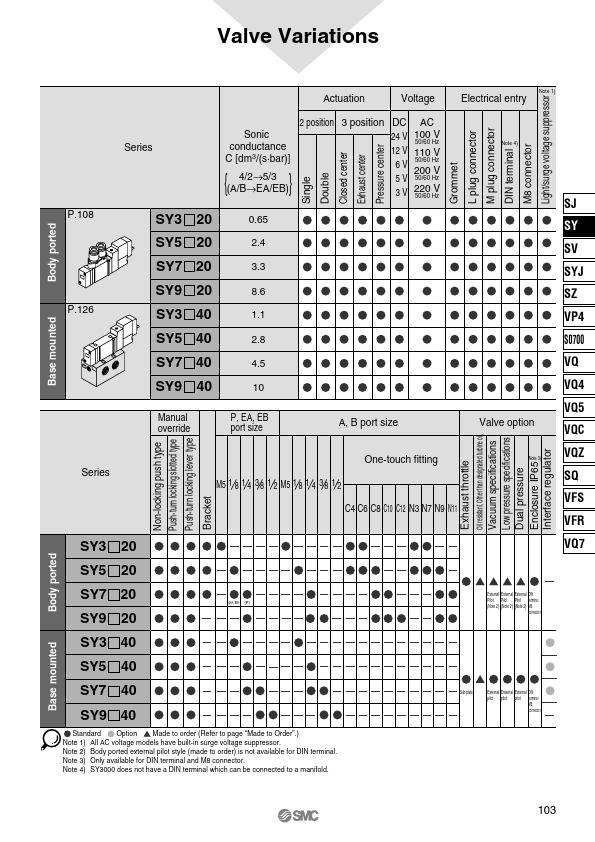

SY9520 Datasheet Preview Page 2 SY9520 Datasheet Preview Page 3

Datasheet Details

Part number:

SY9520, SY3

Manufacturer:

SMC

File Size:

11.97 MB

Description:

2 position single.

Note:

This datasheet PDF includes multiple part numbers: SY9520, SY3.
Please refer to the document for exact specifications by model.
