VXZ2 Datasheet - SMC

VXZ2 Installation and Maintenance Manual Series

Body Bonnet O ring Diaphragm assembly Core assembly Armature assembly Holder assembly Return spring Coil assembly Collar Standard Brass/BC6 Brass NBR SUS *NBR SUS *Copper SUS *NBR POM *NBR SUS B-mold SUS Material Option SUS SUS FPM/EPR SUS *FPM/SUS *EPR SUS *Silver SUS *FPM/S.

044A/Eng Installation and Maintenance Manual Series VXZ 2 Port Solenoid Valve For future reference, please keep this manual in a safe place This manual should be read in conjunction with the current valve catalogue Ǡ N.O ǡ Normally open type (Fig 2) Model/Valve specifications Flow rate coefficient Port size Orifice dia mm ø 10 10 15 20 25 Cv Effective orifice (mm2) 34 43 95 165 215 Model Min Max. operating pressure difference MPa (kgf/cm2) operating Water Air Oil pressure difference AC DC AC D.

VXZ2 Datasheet (2.94 MB)

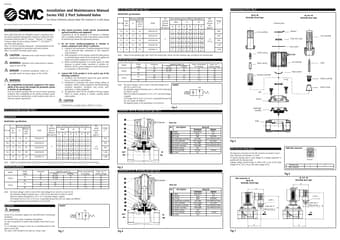

VXZ2 Datasheet Preview — Preview of VXZ2 PDF

Datasheet Details

Part number:

VXZ2

Manufacturer:

SMC

File Size:

2.94 MB

Description:

Installation and maintenance manual series.
