SZ1527, SZ153D Surface Mount Zener Rectifiers

Description

SZ153D thru SZ15D0 3.3 *200 V 1.0 W Surface Mount Zener Rectifiers Reverse Voltage 3.3 to 200 V Power 1.0 W .

📥 Download Datasheet

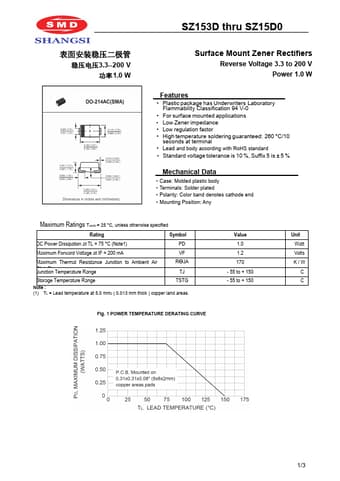

SZ1527 Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ1527, SZ153D. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SZ1527, SZ153D
Manufacturer: SMD
File Size: 617.71 KB
Datasheet: SZ153D-SMD.pdf
Description: Surface Mount Zener Rectifiers
Note: This datasheet PDF includes multiple part numbers: SZ1527, SZ153D.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94 V-0

Applications

* Low Zener impedance
* Low regulation factor
* High temperature soldering guaranteed: 260 °C/10 seconds at terminal
* Lead and body according with RoHS standard
* Standard voltage tolerance is 10 %, Suffix 5 is ± 5 % Mechanical Data
* Case: Molded plastic
