SZ15B1, SZ153D Surface Mount Zener Rectifiers

SZ15B1 Description

SZ153D thru SZ15D0 3.3 *200 V 1.0 W Surface Mount Zener Rectifiers Reverse Voltage 3.3 to 200 V Power 1.0 W .

SZ15B1 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94 V-0

SZ15B1 Applications

* Low Zener impedance
* Low regulation factor
* High temperature soldering guaranteed: 260 °C/10 seconds at terminal
* Lead and body according with RoHS standard
* Standard voltage tolerance is 10 %, Suffix 5 is ± 5 % Mechanical Data
* Case: Molded plastic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SZ15B1, SZ153D. Please refer to the document for exact specifications by model.

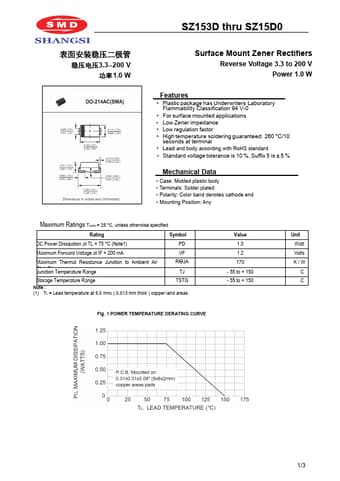

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SZ15B1, SZ153D
Manufacturer
SMD
File Size
617.71 KB
Datasheet
SZ153D-SMD.pdf
Description
Surface Mount Zener Rectifiers
Note
This datasheet PDF includes multiple part numbers: SZ15B1, SZ153D.
Please refer to the document for exact specifications by model.
