COM20020D - ULANC Revision D Universal Local Area Network Controller

COM20020D Description

www.DataSheet4U.com COM20020D COM20020 ULANC Revision D Universal Local Area Network Controller with 2K x 8 On-Board RAM .
SMSC's COM20020D is a member of the family of Embedded ARCNET Controllers from Standard Microsystems Corporation.

COM20020D Features

* New Features for Rev. D Data Rates up to 5 Mbps Programmable Reconfiguration Times 24 Pin DIP, 28 Pin PLCC Package Ideal for Industrial/Factory/Building Automation and Transportation Applica

COM20020D Applications

* Deterministic, (ANSI 878.1), Token Passing ARCNET Protocol Minimal Microcontroller and Media Interface Logic Required Flexible Interface For Use With All Microcontrollers or Microprocessors Automatically Detects Type of Microcontroller Interface 2Kx8 On-Chip Dual Port RAM Command Chaining for Packet

📥 Download Datasheet

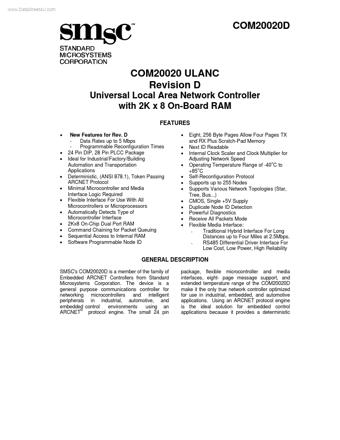

Preview of COM20020D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
COM20020D
Manufacturer
SMSC Corporation
File Size
267.63 KB
Datasheet
COM20020D_SMSCCorporation.pdf
Description
ULANC Revision D Universal Local Area Network Controller
