COM20022I - 10 Mbps ARCNET Controller

COM20022I Description

COM20022I 10 Mbps ARCNET (ANSI 878.1) Controller with 2Kx8 On-Chip RAM Product .

COM20022I Features

* New Features
* Data Rates up to 10 Mbps
* Selectable 8/16 Bit Wide Bus With Data Swapper
* Programmable DMA Channel
* Programmable Reconfiguration Times
* 48 Pin TQFP Package; Lead-Free RoHS Compliant Package also available
* Ideal for Industrial/Fac

COM20022I Applications

* Deterministic, (ANSI 878.1), Token Passing ARCNET Protocol
* Minimal Microcontroller and Media Interface Logic Required
* Flexible Interface For Use With All Microcontrollers or Microprocessors
* Automatically Detects Type of Microcontroller Interface
* 2Kx8 On-Chip Dual Port R

📥 Download Datasheet

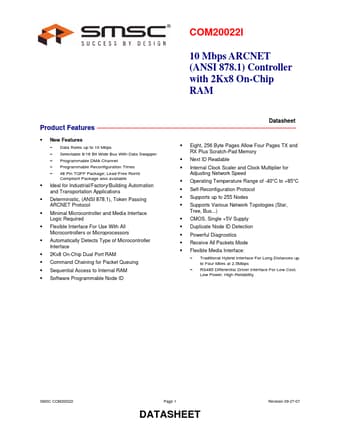

Preview of COM20022I PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
COM20022I
Manufacturer
SMSC Corporation
File Size
504.73 KB
Datasheet
COM20022I-SMSCCorporation.pdf
Description
10 Mbps ARCNET Controller
