LAN83C180 Datasheet - SMSC Corporation

10/100 Fast Ethernet PHY Transceiver

LAN83C180 Features

* Single Chip 100Base-TX/10Base-T Ethernet Physical Layer (PHY) Solution Dual Speed

* 10/100 Mbps Full MII Interface for a Glueless MAC Connection MI Interface for Configuration and Status Half Duplex and Full Duplex in Both 10BASE-T and 100BASE-TX Repeater Mode Extended Register Set Integrate

LAN83C180 General Description

The LAN83C180 is a single chip CMOS physical layer (PHY) solution providing all necessary functions between the Media Independent Interface (MII) and the magnetics connected to Category 5 twisted pair media. It is designed for 10BASE-T and 100BASE-TX Ethernet, and is based on the IEEE 802.3 specific.

LAN83C180 Datasheet (166.42 KB)

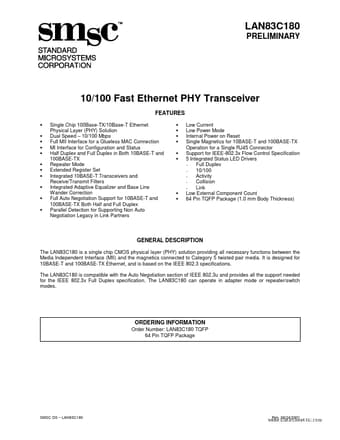

LAN83C180 Datasheet Preview — Preview of LAN83C180 PDF

Datasheet Details

Part number:

LAN83C180

Manufacturer:

SMSC Corporation

File Size:

166.42 KB

Description:

10/100 fast ethernet phy transceiver.
