LPC47N207

LPC Super I/O IrDA Hot Docking Chip

LPC47N207 Features

* Data Brief

* 3.3 Volt Operation (5V tolerant) Programmable Wakeup Event Interface (IO_PME# Pin) SMI Support (IO_SMI# Pin) GPIOs (16)

* Programmable internal pull-up resistors Infrared Communications Controller

* IrDA v1.2 (4Mbps), H

LPC47N207 General Description

at any time without notice. Contact your local SMSC sales office to obtain the latest specifications before placing your product order. The provision of this information does not convey to the purchaser of the described semiconductor devices any licenses under any patent rights or other intellectua.

LPC47N207 Datasheet (183.31 KB)

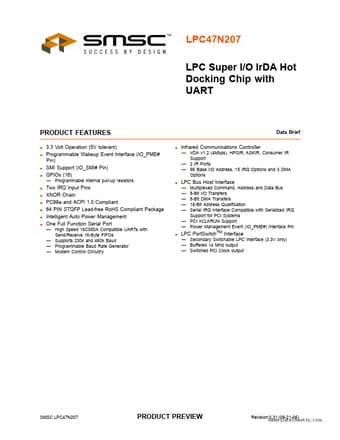

Preview of LPC47N207 PDF

Datasheet Details

Part number:

LPC47N207

Manufacturer:

SMSC Corporation

File Size:

183.31 KB

Description:

Lpc super i/o irda hot docking chip.
