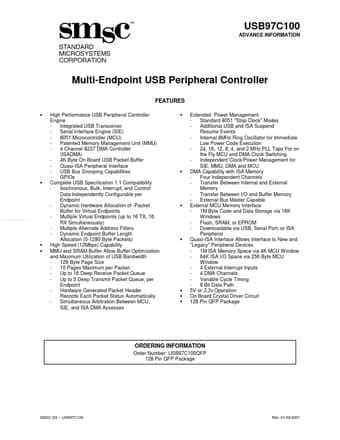

Part number: USB97C100
Manufacturer: SMSC Corporation
File Size: 460.62KB
Download: 📄 Datasheet
Description: Multi-Endpoint USB Peripheral Controller
High Performance USB Peripheral Controller Engine Integrated USB Transceiver Serial Interface Engine (SIE) 8051 Microcontroller (MCU) Patented Memory Management Unit (MMU.
The USB97C100 provides an ISA-like bus interface, which will allow virtually any PC peripheral to be placed at the end .
The USB97C100 is a flexible, general purpose USB peripheral interface and controller ideally suited for multiple endpoint applications. The USB97C100 provides an ISA-like bus interface, which will allow virtually any PC peripheral to be placed at the.
Image gallery
