USB3311 - Hi-Speed USB Transceiver

USB3311 Description

USB3311 Hi-Speed USB Transceiver with 1.8V ULPI Interface 26MHz Reference Clock PRODUCT .
at any time without notice.

USB3311 Features

* Data Brief
* USB-IF “Hi-Speed” compliant to the Universal Serial Bus Specification Rev 2.0 Interface compliant with the ULPI Specification revision 1.1 as a Single Data Rate (SDR) PHY 1.8V IO Voltage (+/- 10%) SMSC flexPWRTM Technology

USB3311 Applications

* “Sleep” mode tri-states all ULPI pins and places the part in a low current state Carkit UART mode for non-USB serial data transfers Integrated USB Switch
* Allows single USB port of connection High speed data Battery charging Stereo and mono

📥 Download Datasheet

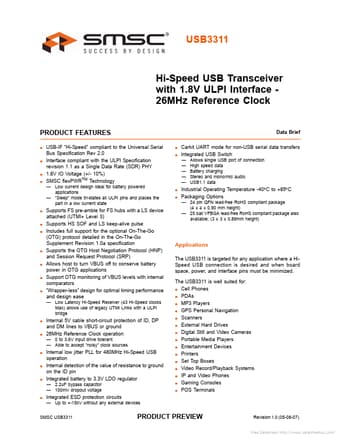

Preview of USB3311 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
USB3311
Manufacturer
SMSC
File Size
449.29 KB
Datasheet
USB3311_SMSC.pdf
Description
Hi-Speed USB Transceiver
