SM3016 Datasheet, Motor, SOC

SM3016 Features

  • Motor
  • NEMA23 Frame Size
  • Single or double ended shaft
  • 6 Wire lead type
  • 183 oz-in holding torque
  • 3.0A per phase, 1.00 ohm, 1.6mH
  • 0.2

PDF File Details

Part number:

SM3016

Manufacturer:

SOC

File Size:

370.19kb

Download:

📄 Datasheet

Description:

Stepper motor.

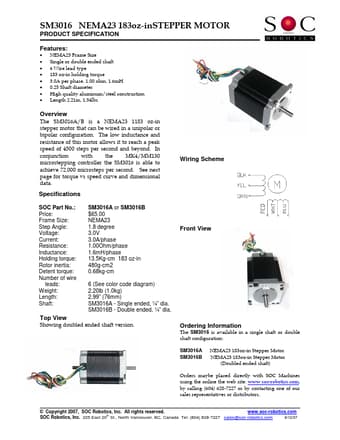

Datasheet Preview: SM3016 📥 Download PDF (370.19kb)
Page 2 of SM3016
