SZ1330A, SZ1110A - Surface Mount Zener Diodes

Name: SZ1330A
SKU: SZ1330A-1288759

SOCAY

The SZ1330A by SOCAY is a Surface Mount Zener Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	SZ1330A, SZ1110A
Manufacturer	SOCAY
File Size	130.23 KB
Description	Surface Mount Zener Diodes
Datasheet	SZ1110A-SOCAY.pdf
Note	This datasheet PDF includes multiple part numbers: SZ1330A, SZ1110A. Please refer to the document for exact specifications by model.

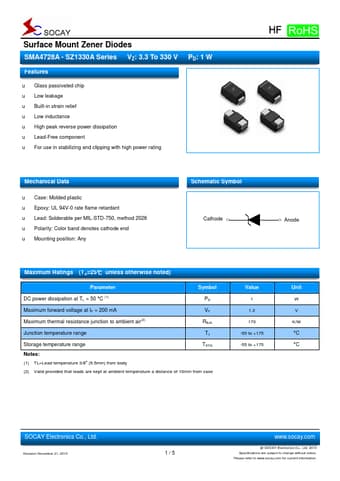

Additional preview pages of the SZ1330A datasheet.

u Glass passivated chip u Low leakage u Built-in strain relief u Low inductance u High peak reverse power dissipation u Lead-Free component u For use in stabilizing and clipping with high power rating PD: 1 W Mechanical Data u Case: Molded plastic u Epoxy: UL 94V-0 rate flame retardant u Lead: Solderable per MIL-STD-750, method 2026 u Polarity: Color band denotes cathode end u Mounting position: Any Schematic Symbol Cathode Anode Maximum Ratings (TA=25℃ unless otherwise noted) Parameter S.
