SY42STH38-1684A Datasheet - SONGYANG

SY42STH38-1684A HIGH TORQUE HYBRID STEP PING MOTOR

BY SY42STH38-1684A DATE CHANGZHOU SONGYANG MACHINERY & ELECTRONICS NEW TECHNIC INSTITUTE.
HIGH TORQUE HYBRID STEPPING MOTOR SPECIFICATIONS General specifications Step Angle ( °) Temperature Rise (℃) Ambient Temperature (℃) Number of Phase Insulation Resistance (MΩ) Insulation Class Max.radial force (N) Max.axial force (N) 1.8 80 Max (rated current、2 phase on) -20～+50 2 100 Min (500VDC) Class B 28 (20mm from the flange) 10 Electrical specifications Rated Voltage (V) Rated Current (A) Resistance Per Phase ( ±10% Ω) Inductance Per Phase ( ±20% mH) Holding torque(N.cm) 2.8 .

SY42STH38-1684A Datasheet (25.69 KB)

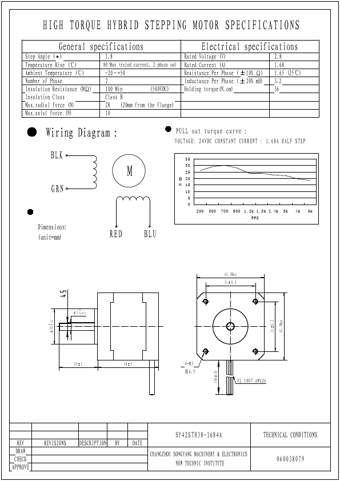

Preview of SY42STH38-1684A PDF

Datasheet Details

Part number:

SY42STH38-1684A

Manufacturer:

SONGYANG

File Size:

25.69 KB

Description:

High torque hybrid step ping motor.
