SN66010 - 2-Channel Speech Controller

SONiX Technology Company

SN66010 Datasheet Preview — Preview of SN66010 PDF

Datasheet Details

Part number	SN66010
Manufacturer	SONiX Technology Company
File Size	104.53 KB
Description	2-Channel Speech Controller
Datasheet	SN66010_SONiXTechnologyCompany.pdf

SN66010 Product details

Description

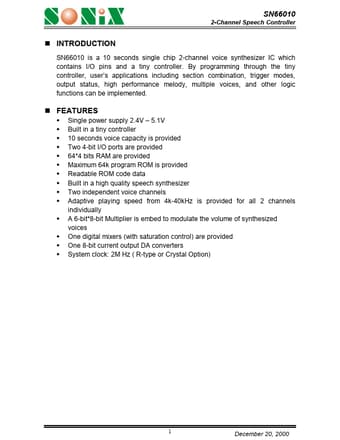

I/O Bit0 of port 2 I/O Bit1 of port 2 I/O Bit2 of port 2 I/O Bit3 of port 2 I/O Bit0 of port 3 I/O Bit1 of port 3 I/O Bit2 of port 3 I/O Bit3 of port 3 I I I O I Positive power supply Negative power supply Oscillator / Crystal In Crystal Out Clock type select ‘L’ → R type (1M) ‘H’ → 2M Crystal Internal pull low. ABSOLUTE MAXIMUM RATING Items Supply Voltage Input Voltage Operating

Features

Single power supply 2.4V.
5.1V Built in a tiny controller 10 seconds voice capacity is provided Two 4-bit I/O ports are provided 64.
4 bits RAM are provided Maximum 64k program ROM is provided Readable ROM code data Built in a high quality speech synthesizer Two independent voice channels Adaptive playing speed from 4k-40kHz is provided for all 2 channels individually A 6-bit.
8-bit Multiplier is e.
