SN67004 - Speech Controller

SONiX Technology Company

📥 Download Datasheet

SN67004 Datasheet Preview — Preview of SN67004 PDF

Datasheet Details

Part number	SN67004
Manufacturer	SONiX Technology Company
File Size	112.42 KB
Description	Speech Controller
Datasheet	SN67004_SONiXTechnologyCompany.pdf

SN67004 Product details

Description

Bit0 of I/O port 2 Bit1 of I/O port 2 Bit2 of I/O port 2 Bit3 of I/O port 2 Bit0 of I/O port 3 Bit1 of I/O port 3 Positive power supply Oscillation component connection pin For testing only Negative power supply D/A current output 2 December 20, 2000 SN67004 Speech Controller ABSOLUTE MAXIMUM RATING Items Supply Voltage Input Voltage Operating Temperature Storage Temperature Symbol VDD VIN TOP TSTG Min -0.3 VSS-0.3 -20.0 -55.0 Max 6.0 VDD+0.3 70.0 125.0 Unit.V V o o C C

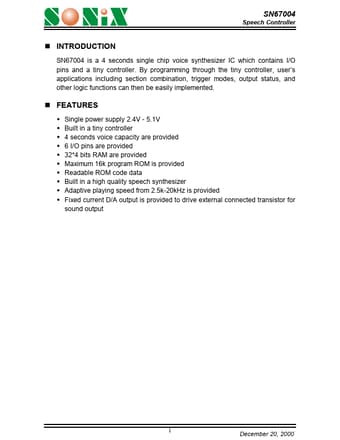

Features

Single power supply 2.4V - 5.1V Built in a tiny controller 4 seconds voice capacity are provided 6 I/O pins are provided 32.
4 bits RAM are provided Maximum 16k program ROM is provided Readable ROM code data Built in a high quality speech synthesizer Adaptive playing speed from 2.5k-20kHz is provided Fixed current D/A output is provided to drive external connected transistor for sound output 1 December 20, 2000 SN67004 Speech Cont.
