SN67006 - Speech Controller

General Description

Bit0 of input port 1 Bit1 of input port 1 Bit2 of input port 1 Bit3 of input port 1 Bit0 of I/O port 2 Bit1 of I/O port 2 Bit2 of I/O port 2 Bit3 of I/O port 2 Bit0 of I/O port 3 Bit1 of I/O port 3 Bit2 of I/O port 3 Bit3 of I/O port 3 Positive power supply Oscillation component connection pin For t

Key Features

  • Single power supply 2.4V - 5.1V Built in a tiny controller 6 seconds voice capacity are provided One 4-bit input port and two 4-bit I/O ports are provided 64.
  • 4 bits RAM are provided Maximum 16k program ROM is provided Readable ROM code data Built in a high quality speech synthesizer Adaptive playing speed from 2.5k-20kHz is provided Fixed current D/A output is provided to drive external connected transistor for sound output.
  • Low Voltage Reset.

📥 Download Datasheet

Datasheet Details

Part number SN67006
Manufacturer SONiX Technology Company
File Size 117.51 KB
Description Speech Controller
Datasheet download datasheet SN67006 Datasheet

Full PDF Text Transcription for SN67006 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for SN67006. For precise diagrams, and layout, please refer to the original PDF.

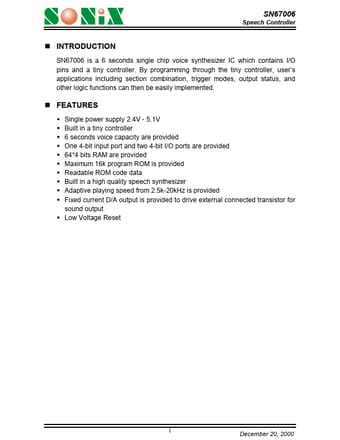

SN67006 Speech Controller „ INTRODUCTION SN67006 is a 6 seconds single chip voice synthesizer IC which contains I/O pins and a tiny controller. By programming through the...

View more extracted text
ch contains I/O pins and a tiny controller. By programming through the tiny controller, user’s applications including section combination, trigger modes, output status, and other logic functions can then be easily implemented. „ FEATURES Single power supply 2.4V - 5.1V Built in a tiny controller 6 seconds voice capacity are provided One 4-bit input port and two 4-bit I/O ports are provided 64*4 bits RAM are provided Maximum 16k program ROM is provided Readable ROM code data Built in a high quality speech synthesizer Adaptive playing speed from 2.
