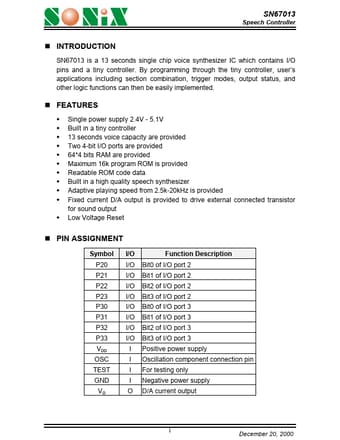

FEATURES - - - - - - - - - - - Single power supply 2.4V - 5.1V Built in a tiny controller 13 seconds voice capacity are provided Two 4-bit I/O ports are provided 64- 4 bits RAM are provided Maximum 16k program ROM is provided Readable ROM code data Built in a high quality speech synthesizer Adaptive playing speed from 2.5k-20k Hz is provided Fixed current D/A output is provided to drive external connected transistor for sound output Low Voltage Reset - PIN ASSIGNMENT Symbol P20 P21 P22 P23 P30 P31 P32 P33 VDD OSC TEST GND VO I/O I/O I/O I/O I/O I/O I/O I/O I/O I I I I O Function Description Bit0 of I/O port 2 Bit1 of I/O port 2 Bit2 of I/O port 2 Bit3 of I/O port 2 Bit0 of I/O port 3 Bit1 of I/O port 3 Bit2 of I/O port 3 Bit3 of I/O port 3 Positive power supply Oscillation ponent connection pin For testing only Negative power supply D/A current output December 20, 2000 Speech Controller - ABSOLUTE MAXIMUM RATING Items Supply Voltage Input Voltage Operating Temperature Storage Temperature Symbol VDD VIN TOP TSTG Min -0.3 VSS-0.3 -20.0 -55.0 Max 6.0 VDD+0.3 70.0 125.0 Unit. V V o o - ELECTRICAL CHARACTERISTICS Item Operating Voltage Standby Current Operating Current Input Current of P1 Drive Current of P2,P3 Sink Current of P2,P3 D/A Output Current Oscillation Freq. Sym. Min. Typ. Max. Unit VDD ISBY IOPR Ii IOD IOS IVO FOSC 2.4 1.5 2.0 2.0 3.0 3 2 3 3.0 1.0 5.1 2.0 250 4.0 V u A VDD=3V, no load u A VDD=3V, no load u A VDD=3V m A VDD=3V,VO=2.4V m A VDD=3V,VO=0.4V m A VDD=3V,VO=0.7V MHz VDD=3V Condition December 20, 2000 Speech Controller - BONDING PAD Note: The substrate MUST be connected to Vss in PCB layout. December 20, 2000 Speech Controller DISCLAIMER The information appearing in SONi X web pages (“this publication”) is believed to be accurate. However, this publication could contain technical inaccuracies or typographical errors. The reader should not assume that this publication is error-free or that it will be...
