SC8723 Datasheet - SOUTHCHIP

3.5A Buck-Boost Converter

SC8723 Features

* High Efficiency Buck-Boost Conversion

* Few External Components

* Integrated Low RDS(ON) Switches

* Wide VIN Range: 2.7 V to 24 V

* Wide VOUT Range:3V to 22V

* Fixed 5.1V VOUT with FB tied to GND

* Up to 3.5A Output Current

* 250K/500

SC8723 General Description

SC8723 is a synchronous 4-switch buck-boost converter with four integrated switches. It provides excellent power efficiency and voltage regulation no matter the output voltage is higher, lower or equal to the input voltage. SC8723 supports very wide input and output voltage range. It can support ap.

SC8723 Datasheet (214.62 KB)

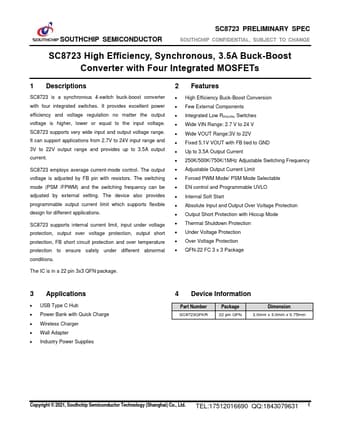

SC8723 Datasheet Preview — Preview of SC8723 PDF

Datasheet Details

Part number:

SC8723

Manufacturer:

SOUTHCHIP

File Size:

214.62 KB

Description:

3.5a buck-boost converter.
SOUTHCHIP SEMICONDUCTOR SC8723 PRELIMINARY SPEC SOUTHCHIP CONFIDENTIAL, SUBJECT TO CHANGE SC8723 High Efficiency, Synchronous, 3.5A Buck-Boost Conve.
