SC8906 - Buck-Boost Charger Converter

Description

SC8906 is a synchronous buck-boost charger converter.

Four switches are integrated to simplify the system design.

SC8906 employs current-mode control and can support very wide input and output voltage range.

Features

  • Buck-Boost Battery Charger for 2 to 4 Cell Batteries 4.2V/4.35V/4.4V for 2 and 3 cells, 4.2V/4.35V for 4 cells.
  • Charging Management: Trickle Charging, CC Charging, CV Charging, Charging Termination, Auto Recharge.
  • Integrated Switches, 10 mΩ for Q1/4, 20 mΩ for Q2/3.
  • Wide VBAT Range: 2.7 V to 22 V, 25V sustainable.
  • Wide VBUS Range: 2.7 V to 22 V, 25V sustainable.
  • DP / DM Handshaking for Fast Charging Mode.
  • Safety Timer.
  • Prog.

📥 Download Datasheet

Datasheet Details

Part number SC8906
Manufacturer SOUTHCHIP
File Size 659.65 KB
Description Buck-Boost Charger Converter
Datasheet download datasheet SC8906 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SC8921 Synchronous Boost Charger ChipSourceTek
SC8 SILICON CONTROLLED RECTIFIERS TRSYS
SC8-400-80 SILICON CONTROLLED RECTIFIERS TRSYS
SC8-600-80 SILICON CONTROLLED RECTIFIERS TRSYS
SC8-700-80 SILICON CONTROLLED RECTIFIERS TRSYS

Other Datasheets by SOUTHCHIP

Part Number Description
SC8905 Boost Charger Converter
SC8915 Bi-Directional Buck-Boost Charge Converter
SC89171 Synchronous Buck Charger
SC8922 Synchronous Boost Charger
SC8933 Bi-directional Buck Charger Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

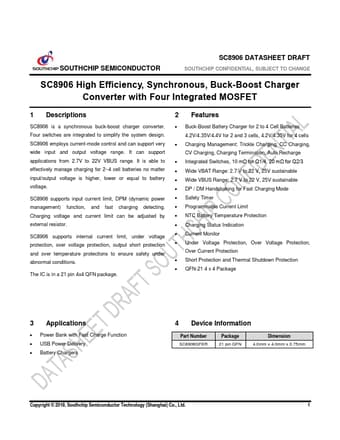

SOUTHCHIP SEMICONDUCTOR SC8906 DATASHEET DRAFT SOUTHCHIP CONFIDENTIAL, SUBJECT TO CHANGE SC8906 High Efficiency, Synchronous, Buck-Boost Charger Converter with Four Integrated MOSFET 1 Descriptions SC8906 is a synchronous buck-boost charger converter. Four switches are integrated to simplify the system design. SC8906 employs current-mode control and can support very wide input and output voltage range. It can support applications from 2.7V to 22V VBUS range. It is able to effectively manage charging for 2~4 cell batteries no matter input/output voltage is higher, lower or equal to battery voltage. SC8906 supports input current limit, DPM (dynamic power management) function, and fast charging detecting. Charging voltage and current limit can be adjusted by external resistor.
