AM29LV2562M 512 Megabit (16 M x 32-Bit/32 M x 16-Bit) MirrorBit 3.0 Volt-only Uniform Sector Flash Memory

The Am29LV2562M consists of two 256 Mbit, 3.0 volt single power supply flash memory devices and is organized as 16,777,216 doublewords or 33,554,432 words. The device has a 32-bit wide data bus that can also function as an 16-bit wide data bus by using the WORD# input. The device can be programmed e.

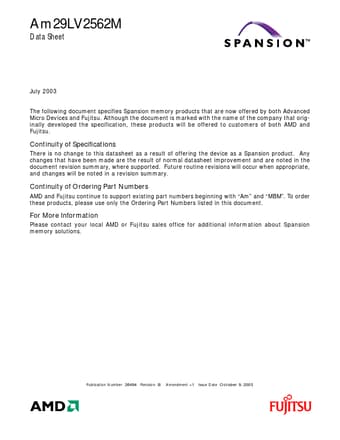

Am29LV2562M Data Sheet July 2003 The following document specifies Spansion memory products that are now offered by both Advanced Micro Devices and Fujitsu. Although the document is marked with the name of the company that originally developed the specification, these products will be offered to customers of both AMD and Fujitsu. Continuity of Specifications There is no change to this datasheet as a result of offering the device as a Spansion product. Any changes that have been made are the res.

AM29LV2562M Features

* Software features

* Program Suspend & Resume: read other sectors before programming operation is completed

* Erase Suspend & Resume: read/program other sectors before an erase operation is completed

* Data# polling & toggle bits provide status

* Unlock Bypass Pr

AM29LV2562M Datasheet (1.42 MB)

AM29LV2562M Datasheet Preview — Preview of AM29LV2562M PDF

Datasheet Details

Part number:

AM29LV2562M

Manufacturer:

SPANSION

File Size:

1.42 MB

Description:

512 megabit (16 m x 32-bit/32 m x 16-bit) mirrorbit 3.0 volt-only uniform sector flash memory.
