ASM240W - Surface Mount Schottky Barrier Rectifier

Product Overview

Datasheet Details

Part number	ASM240W
Manufacturer	SPSEMI
File Size	186.33 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	ASM240W Datasheet

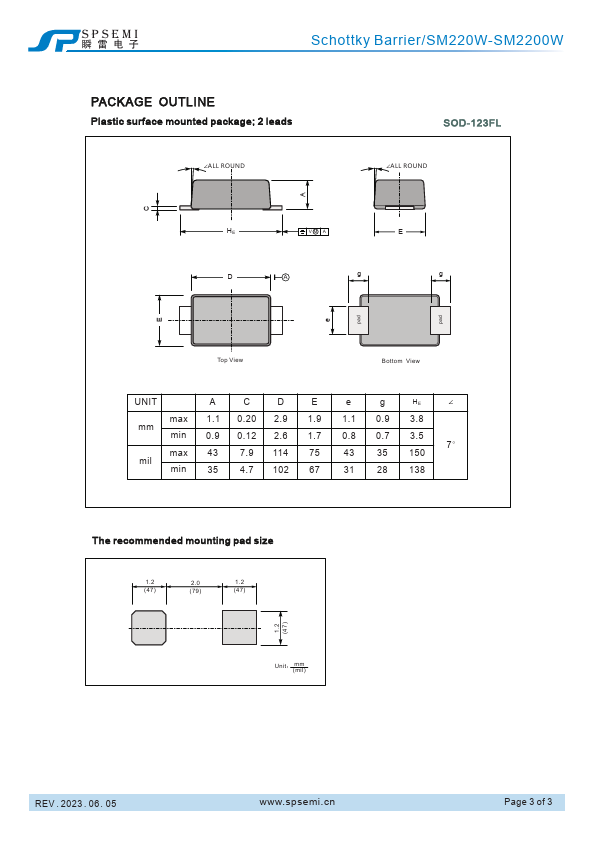

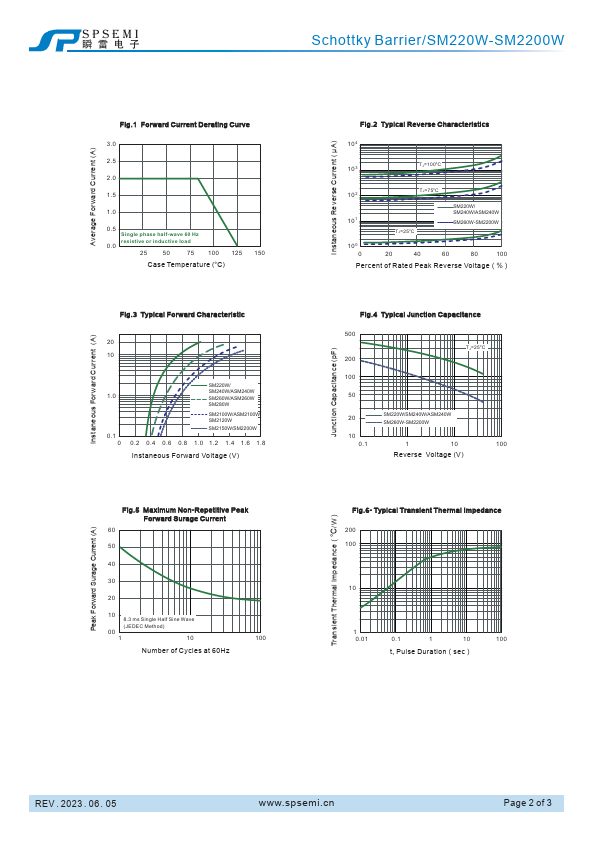

Additional preview pages of the ASM240W datasheet.

Product details

Description

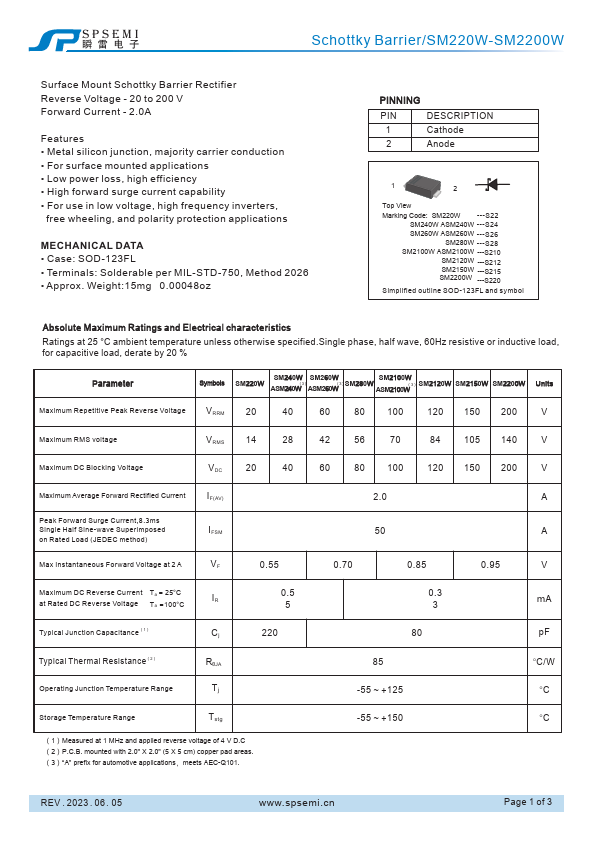

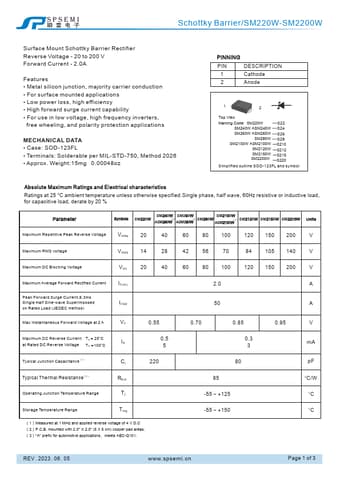

1 Cathode 2 Anode 1 2 Top View Marking Code: SM220W ---S22 SM240W ASM240W ---S24 SM260W ASM260W ---S26 SM280W ---S28 SM2100W ASM2100W ---S210 SM2120W ---S212 SM2150W ---S215 SM2200W ---S220 Simplified outline SOD-123FL and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Parameter Symbols SM240W SM260W SM2100W SM

Features

Metal silicon junction, majority carrier conduction.
For surface mounted.
