SM120WS - SCHOTTKY BARRIER RECTIFIERS

SM120WS Datasheet Preview — Preview of SM120WS PDF

Datasheet Details

Part number	SM120WS
Manufacturer	SPSEMI
File Size	195.95 KB
Description	SCHOTTKY BARRIER RECTIFIERS
Datasheet	SM120WS-SPSEMI.pdf

SM120WS Product details

Description

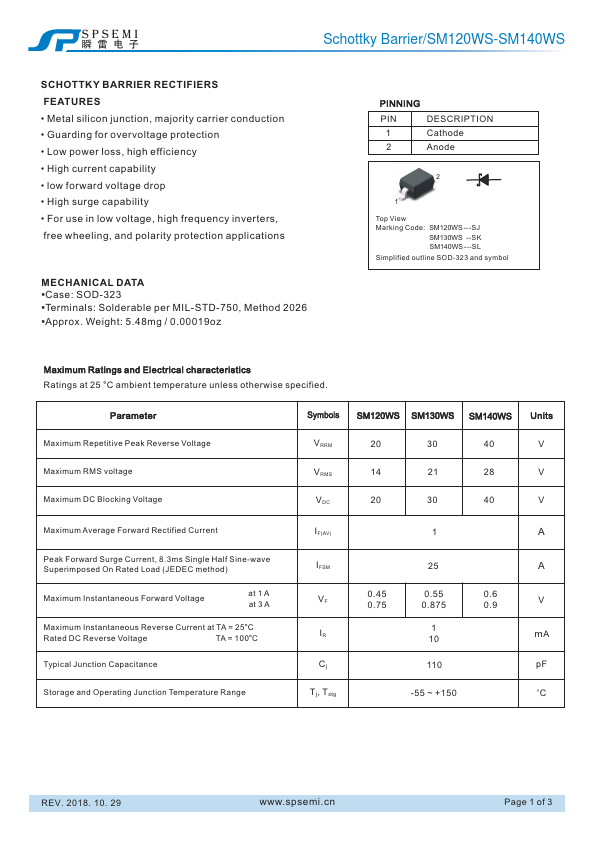

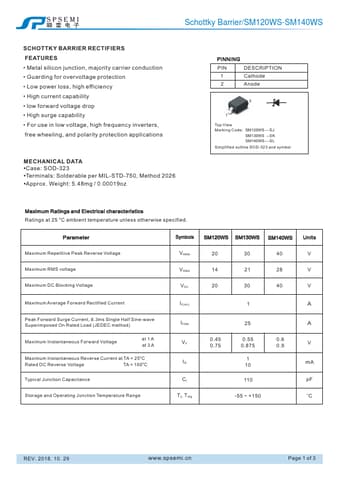

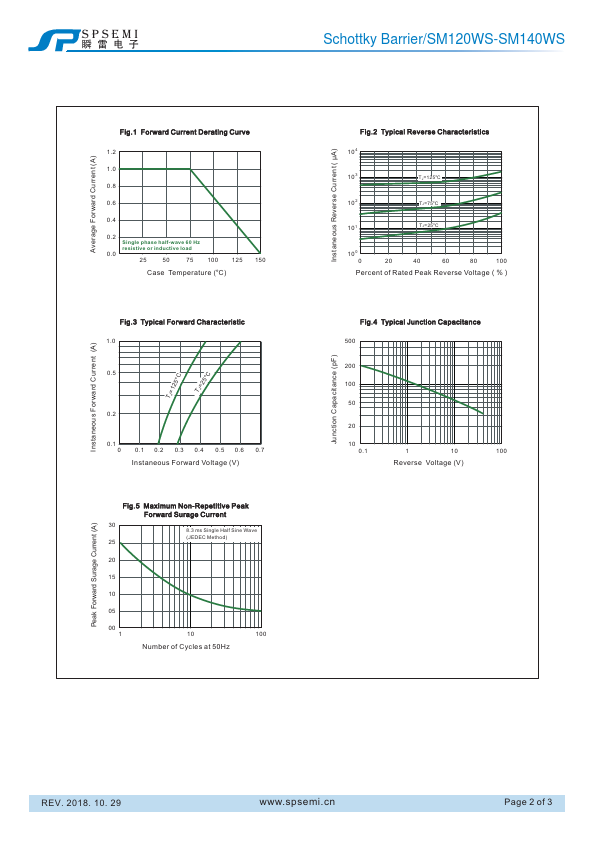

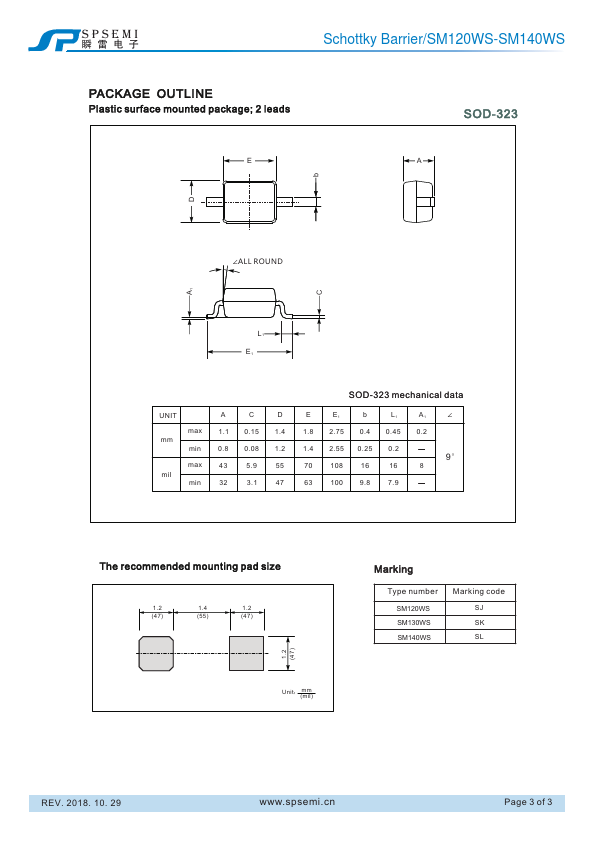

1 Cathode 2 Anode 2 1 Top View Marking Code: SM120WS ---SJ SM130WS --SK SM140WS ---SL Simplified outline SOD-323 and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Parameter Maximum Repetitive Peak Reverse Voltage Maximum RMS voltage Maximum DC Blocking Voltage Symbols SM120WS SM130WS SM140WS Units VRRM 20 30 40 V VRMS 14 21 28 V VDC 20 30 40 V Maximum Average Forward Rectified Current Peak Forward S

Features

Metal silicon junction, majority carrier conduction.
Guarding for overvoltage protection.
Low power loss, high efficiency.
High current capability.
low forward voltage drop.
High surge capability.
For use in low voltage, high frequency inverters, free wheeling, and polarity protection.
