SM130WS, SM120WS - SCHOTTKY BARRIER RECTIFIERS

SM130WS Datasheet Preview — This datasheet PDF includes multiple part numbers: SM130WS, SM120WS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SM130WS, SM120WS
Manufacturer	SPSEMI
File Size	195.95 KB
Description	SCHOTTKY BARRIER RECTIFIERS
Datasheet	SM120WS-SPSEMI.pdf
Note	This datasheet PDF includes multiple part numbers: SM130WS, SM120WS. Please refer to the document for exact specifications by model.

SM130WS Product details

Description

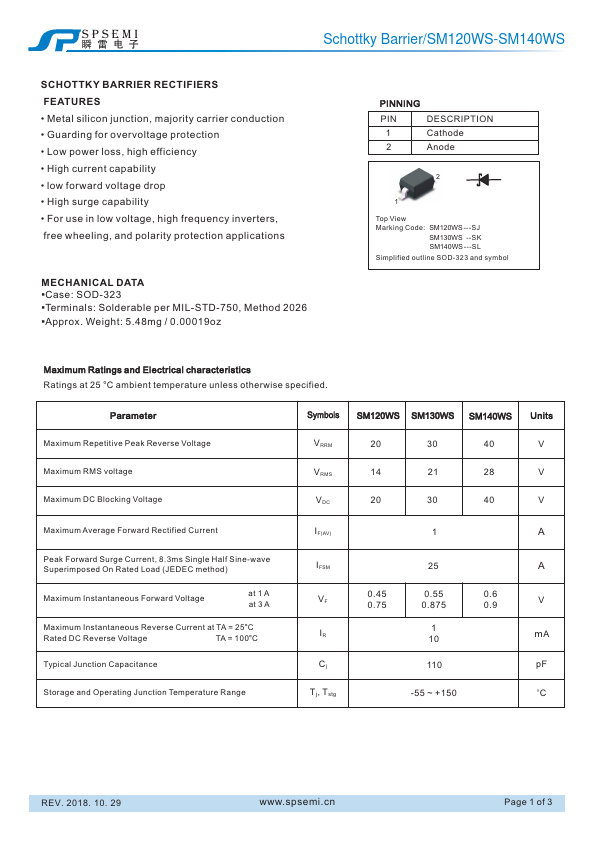

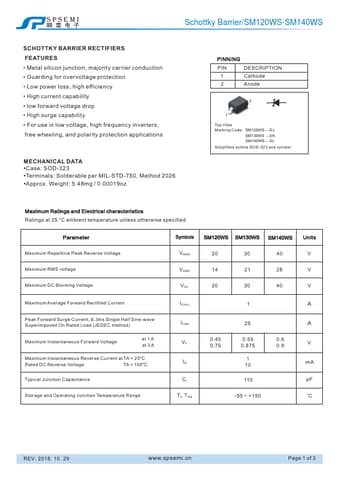

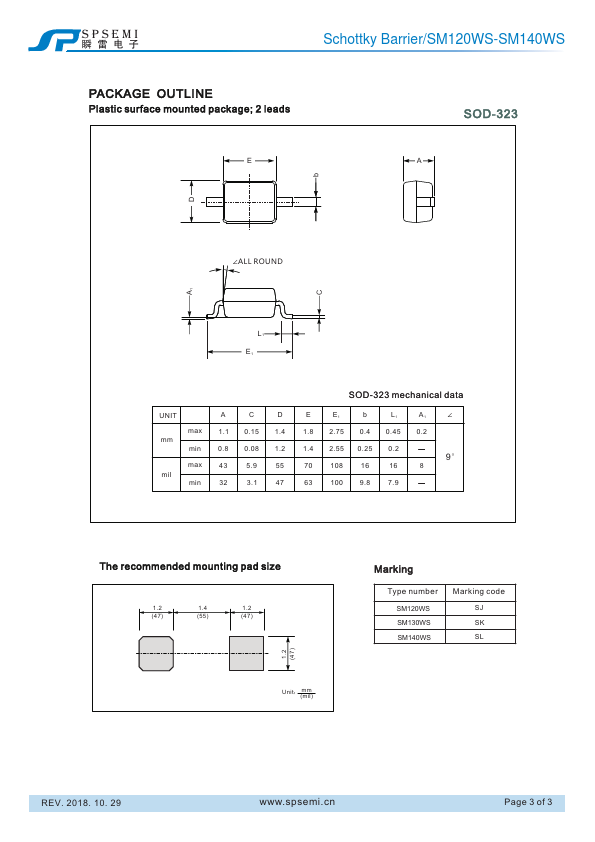

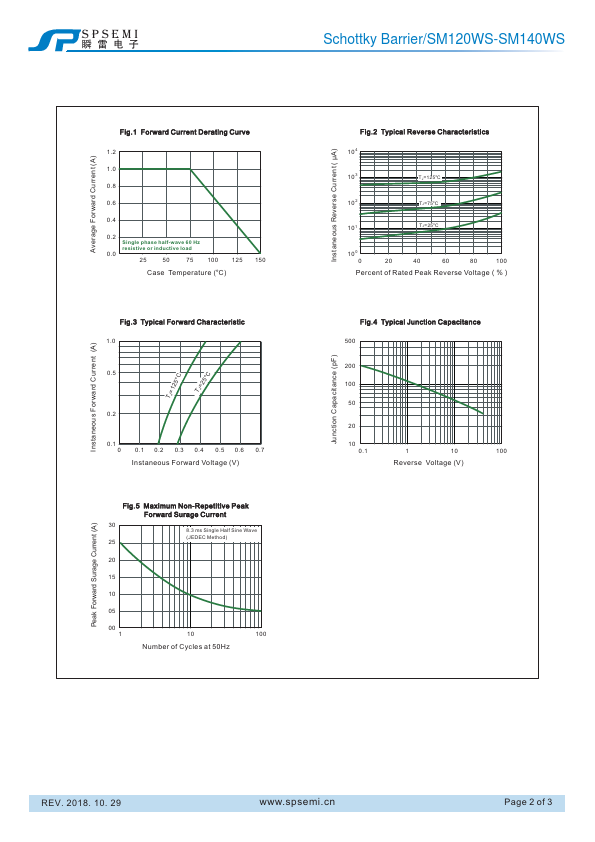

1 Cathode 2 Anode 2 1 Top View Marking Code: SM120WS ---SJ SM130WS --SK SM140WS ---SL Simplified outline SOD-323 and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Parameter Maximum Repetitive Peak Reverse Voltage Maximum RMS voltage Maximum DC Blocking Voltage Symbols SM120WS SM130WS SM140WS Units VRRM 20 30 40 V VRMS 14 21 28 V VDC 20 30 40 V Maximum Average Forward Rectified Current Peak Forward S

Features

Metal silicon junction, majority carrier conduction.
Guarding for overvoltage protection.
Low power loss, high efficiency.
High current capability.
low forward voltage drop.
High surge capability.
For use in low voltage, high frequency inverters, free wheeling, and polarity protection.
