SM240W, SM220W - Surface Mount Schottky Barrier Rectifier

SM240W Description

SPSEMI Schottky Barrier/SM220W-SM2200W Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 V Forward Current - 2.0A .
1 Cathode 2 Anode 1 2 Top View Marking Code: SM220W. -S22 SM240W ASM240W. -S24 SM260W ASM260W. -S26 SM280W. -S2.

SM240W Features

* Metal silicon junction, majority carrier conduction

SM240W Applications

* Low power loss, high efficiency
* High forward surge current capability
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA
* Case: SOD-123FL
* Terminals: Solderable per MIL-STD-750, Method

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM240W, SM220W. Please refer to the document for exact specifications by model.

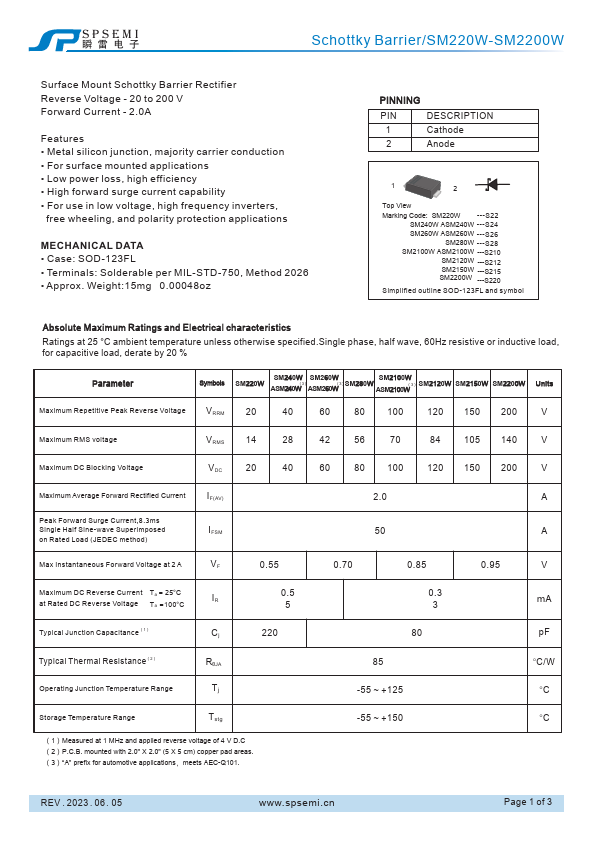

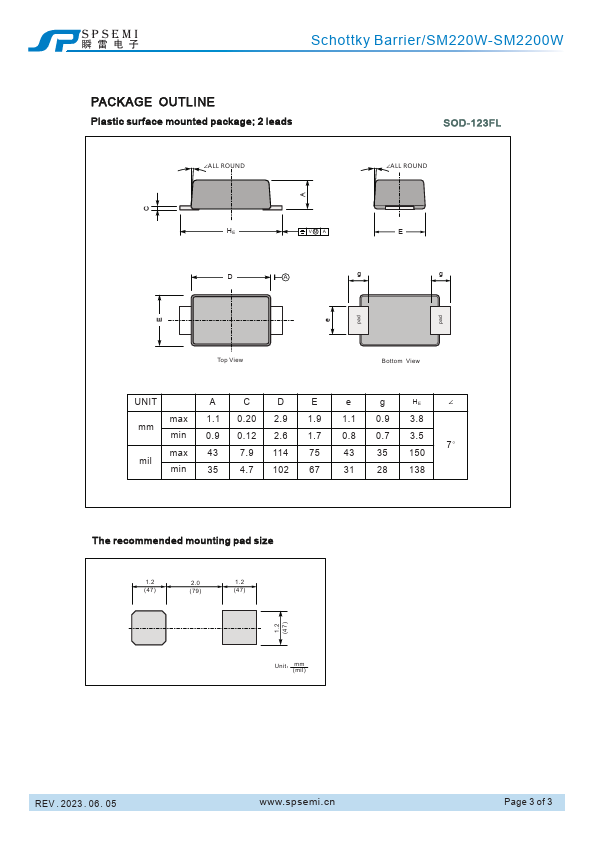

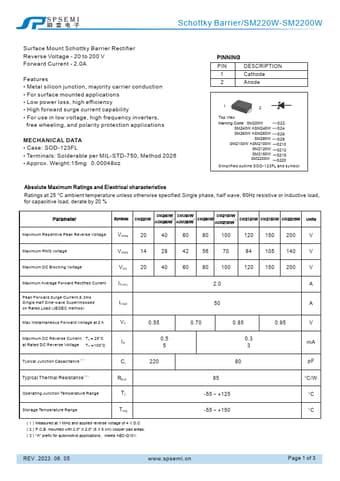

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM240W, SM220W
Manufacturer
SPSEMI
File Size
193.20 KB
Datasheet
SM220W-SPSEMI.pdf
Description
Surface Mount Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SM240W, SM220W.
Please refer to the document for exact specifications by model.
