MSS71A05 - DIP 14 Series Reed Relays

Product Overview

📥 Download Datasheet

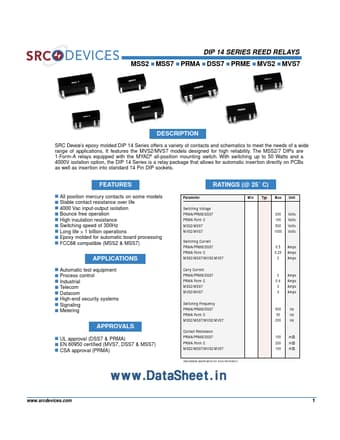

MSS71A05 DIP 14 Series Reed Relays by SRC Devices - Datasheet Preview — Datasheet preview – MSS71A05

Datasheet Details

Part number	MSS71A05
Manufacturer	SRC Devices
File Size	626.94 KB
Description	DIP 14 Series Reed Relays
Datasheet	MSS71A05 Datasheet
Note	This datasheet PDF includes multiple part numbers: MSS71A05, MSS21A05. Please refer to the document for exact specifications by model.
Additional preview pages of the MSS71A05 datasheet.

Product details

Description

SRC Device’s epoxy molded DIP 14 Series offers a variety of contacts and schematics to meet the needs of a wide range of applications.

Features

the MVS2/MVS7 models designed for high reliability. The MSS2/7 DIPs are 1-Form-A relays equipped with the MYAD® all-position mounting switch. With switching up to 50 Watts and a 4000V isolation option, the DIP 14 Series is a relay package that allows for automatic insertion directly on PCBs as well as insertion into standard 14 Pin DIP sockets.
