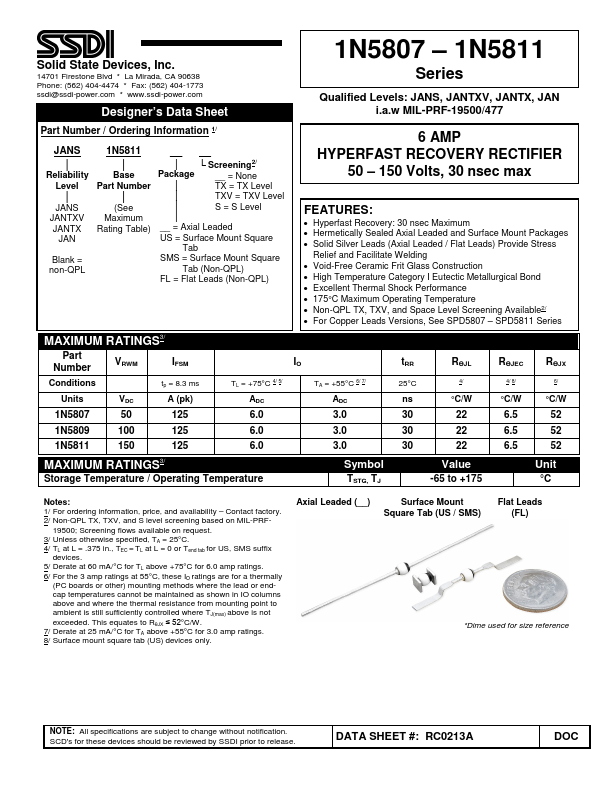

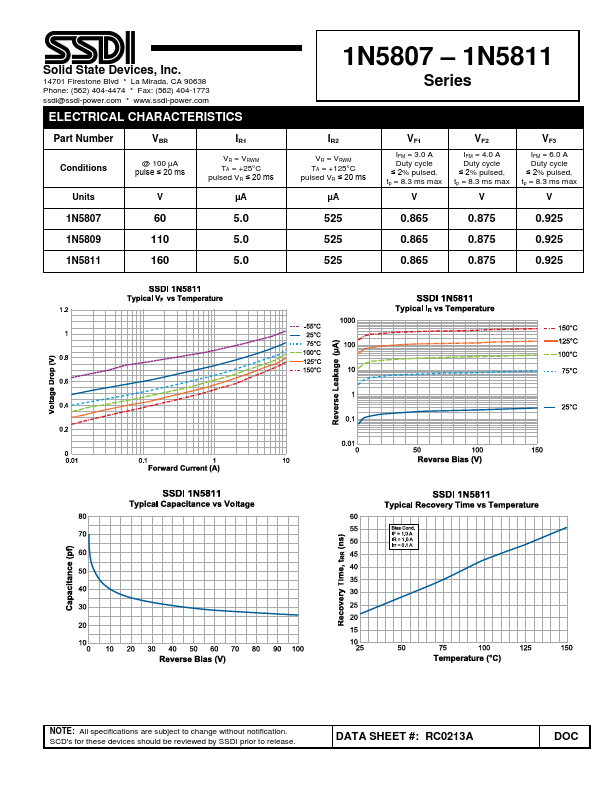

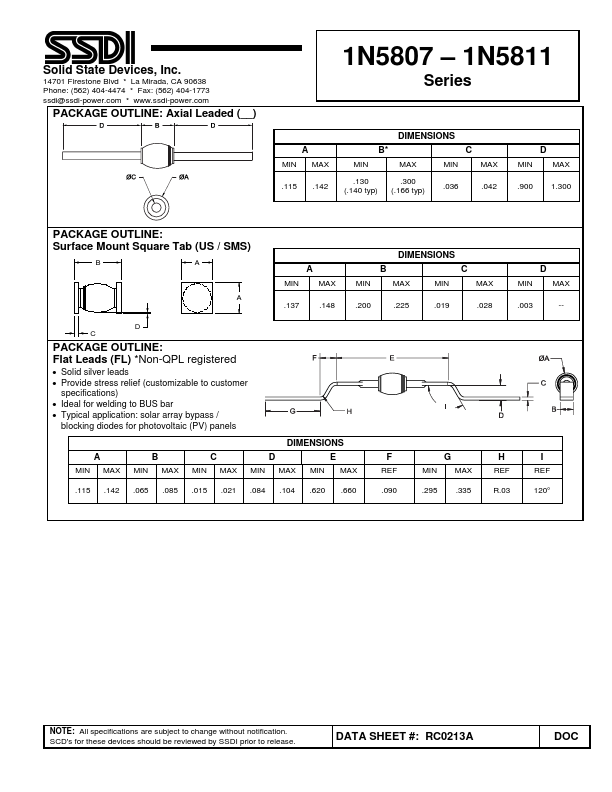

1N5809, 1N5807 - 6 AMP HYPERFAST RECOVERY RECTIFIER

1N5809 Description

Solid State Devices, Inc.14701 Firestone Blvd * La Mirada, CA 90638 Phone: (562) 404-4474 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.

1N5809 Features

* Hyperfast Recovery: 30 nsec Maximum
* Hermetically Sealed Axial Leaded and Surface Mount Packages
* Solid Silver Leads (Axial Leaded / Flat Leads) Provide Stress Relief and Facilitate Welding
* Void-Free Ceramic Frit Glass Construction
* High Temperature Ca

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5809, 1N5807. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5809, 1N5807
Manufacturer
SSDI
File Size
191.76 KB
Datasheet
1N5807-SSDI.pdf
Description
6 AMP HYPERFAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N5809, 1N5807.
Please refer to the document for exact specifications by model.
