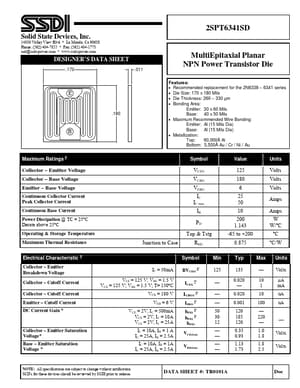

2SPT6341SD - NPN Power Transistor

Datasheet Details

Recommended replacement for the 2N6338.
6341 series.
Die Size: 170 x 180 Mils.
Die Thickness: 260.
330 µm.
Bonding Area: Emitter: 30 x 60 Mils Base: 40 x 50 Mils.
Maximum Recommended Wire Bonding: Emitter: Al (15 Mils Dia) Base: Al (15 Mils Dia).
Metallization: Top: 60,000Å Al Bottom: 5,500Å Au / Cr / Ni / Au Maximum Ratings 4/ Collector.
Emitter Voltage Collector.
Base Voltage Emitter.
Base Vol.
