SAM30HF - HIGH VOLTAGE HYPER FAST RECTIFIER

Solid State Devices, Inc.

14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number / Ordering Information 1/ SAM __ HF __ __ ││ ││ ││ ││ │ └ Screening2/ = None │ TX = TX Level │ TXV = TXV Level │ S = S Level │ │ └ Package ││ ____ = Axial Leaded ││ SMS = Surface Mount Square Tab │ └ Recovery Time │ HF = Hyper Fast └ Voltage 20 = 2000 25 = 2500 30 = 3000 SAM20HF <

SAM30HF Features

* Hyper Fast Recovery: 30 nsec Maximum

* PIV to 3000 Volts

* Hermetically Sealed

* Void-Free Construction

* Metallurgically Bonded

* 175°C Maximum Operating Temperature

* TX, TXV, and Space Level Screening Available 2/ ELECTRICAL CHARACTERISTICS (at 25°C unless otherwis

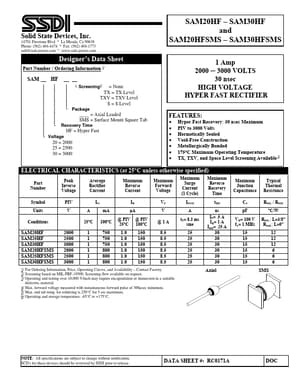

SAM20HF-SSDI.pdf
