SDA381C - (SDA381A - SDA381G) FAST CENTERTAP RECTIFIER

Product Overview

SSDI

Part number	SDA381C
Manufacturer	SSDI
File Size	106.92 KB
Description	(SDA381A - SDA381G) FAST CENTERTAP RECTIFIER
Datasheet	SDA381C Datasheet
Note	This datasheet PDF includes multiple part numbers: SDA381C, SDA381A. Please refer to the document for exact specifications by model.

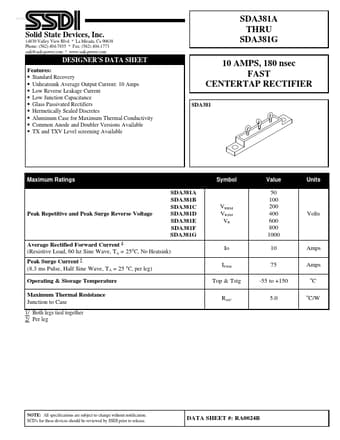

Additional preview pages of the SDA381C datasheet.

: Standard Recovery Unheatsunk Average Output Current: 10 Amps Low Reverse Leakage Current Low Junction Capacitance Glass Passivated Rectifiers Hermetically Sealed Discretes Aluminum Case for Maximum Thermal Conductivity Common Anode and Doubler Versions Available TX and TXV Level screening Available Maximum Ratings Symbol Value Units Peak Repetitive and Peak Surge Reverse Voltage SDA381A SDA381B SDA381C SDA381D SDA381E SDA381F SDA381G VRRM VRSM VR 50 100 200 400 600 800 1000 10 75 -55 t.
