SDR0350 SMD HyperFast Rectifier

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number / Ordering Information 1/ SDR 03 ____ ___ | | | └ Screening2/ || | ___ = Not Screened || | TX = TX Level | | | | | | | | | | └ | | └ TXV = TXV Level S = S Level Package S.22 = SMD.22 Voltage 40 = 400V 50 = 500V └ 60 = 600V Current 03 = 3A SDR0360 series 3 AMP, 30nsec SMD HyperF.

SDR0350 Features

* Hyper Fast Recovery: 30 nsec typical

* Very Low Reverse Leakage Current

* Low Forward Voltage

* Low Junction Capacitance

* Hermetically Sealed Package

* Ultrasonic Aluminum Wire Bonds

* TX, TXV, and Space Level Screening Available Consult Factory.2/ MAXIMUM RATINGS S

SDR0350 Datasheet (127.31 KB)

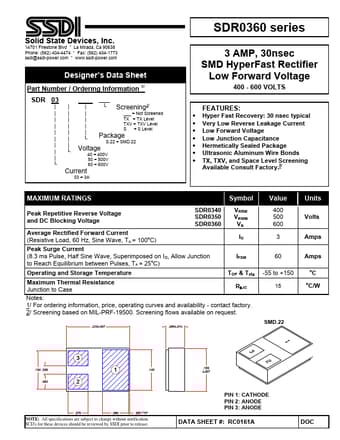

SDR0350 Datasheet Preview — Preview of SDR0350 PDF

Datasheet Details

Part number:

SDR0350

Manufacturer:

SSDI

File Size:

127.31 KB

Description:

Smd hyperfast rectifier.
