SDR527SMS, SDR526, (SDR526SMS - SDR529SMS) HYPER FAST RECTIFIER

www.DataSheet4U.com Solid State Devices, Inc.14830 Valley View Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 ssdi@s.

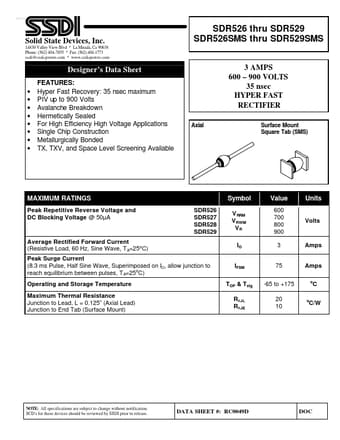

datasheet Preview Page 1 from Datasheet4u.com

SDR526_SSDI.pdf

SDR527SMS Datasheet Preview — This datasheet PDF includes multiple part numbers: SDR527SMS, SDR526. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SDR527SMS, SDR526

Manufacturer:

SSDI

File Size:

55.86 KB

Description:

(SDR526SMS - SDR529SMS) HYPER FAST RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SDR527SMS, SDR526.
Please refer to the document for exact specifications by model.

Applications

* Single Chip Construction Metallurgically Bonded TX, TXV, and Space Level Screening Available MAXIMUM RATINGS Peak Repetitive Reverse Voltage and DC Blocking Voltage @ 50µA SDR526 SDR527 SDR528 SDR529 Symbol V RRM V RWM VR IO IFSM TOP & Tstg Rθ JL Rθ JE Value 600 700 800 900 3 Units Volts Averag
