SDR60015HCT HYPER FAST CENTERTAP RECTIFIER

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, CA 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number/Ordering Information 1/ SDR60 __ H CT __ __ __ ││ │ │ └ Screening 2/ ││ ││ __ = Not Screened ││ ││ ││ ││ ││ ││ TX = TX Level TXV = TXV Level S = S Level ││ ││ │ └ Lead Bend Options (TO-254, Z) │ DB = Down Bend ││ │ UB = Up Bend ││ ││ ││ ││ │ └ Package S1= SMD1 M = TO-254 Z = TO-254.

SDR60015HCT Features

* Hyper Fast Recovery: 35 ns Maximum

* High Surge Rating

* Low Reverse Leakage Current

* Low Junction Capacitance

* Hermetically Sealed Package, isolated (TO-254, Z) or hot case (SMD1)

* Gold Eutectic Die

SDR60010HCT-SSDI.pdf

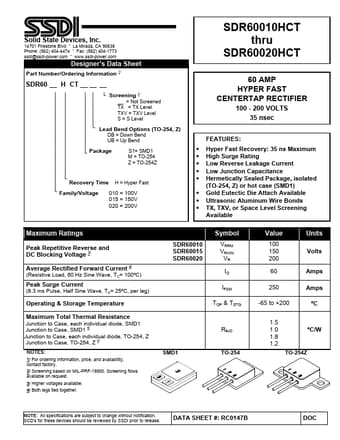

SDR60015HCT Datasheet Preview — This datasheet PDF includes multiple part numbers: SDR60015HCT, SDR60010HCT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SDR60015HCT, SDR60010HCT

Manufacturer:

SSDI

File Size:

166.49 KB

Description:

Hyper fast centertap rectifier.

Note:

This datasheet PDF includes multiple part numbers: SDR60015HCT, SDR60010HCT.
Please refer to the document for exact specifications by model.
