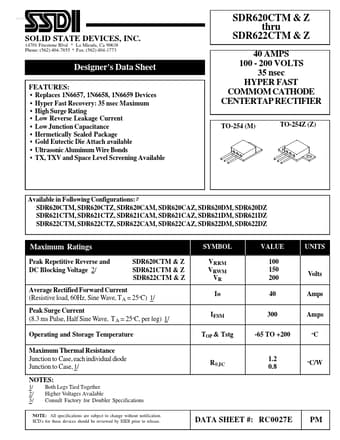

SDR620DZ, SDR620CTM - (SDR620DZ - SDR622DZ) HYPER FAST COMMOM CATHODE CENTERTAP RECTIFIER

Datasheet Details

Part number	SDR620DZ, SDR620CTM
Manufacturer	SSDI
File Size	62.01 KB
Description	(SDR620DZ - SDR622DZ) HYPER FAST COMMOM CATHODE CENTERTAP RECTIFIER
Datasheet	SDR620CTM_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SDR620DZ, SDR620CTM. Please refer to the document for exact specifications by model.

Replaces 1N6657, 1N6658, 1N6659 Devices Hyper Fast Recovery: 35 nsec Maximum High Surge Rating Low Reverse Leakage Current Low Junction Capacitance Hermetically Sealed Package Gold Eutectic Die Attach available Ultrasonic Aluminum Wire Bonds TX, TXV and Space Level Screening Available Available in Following Configurations: 3/ SDR620CTM, SDR620CTZ, SDR620CAM, SDR620CAZ, SDR620DM, SDR620DZ SDR621CTM, SDR621.
