SDR621G, SDR620G - (SDR620G - SDR622G) Hyper Fast Rectifier

Name: SDR621G
SKU: SDR621G-597660

SSDI

The SDR621G by SSDI is a (SDR620G - SDR622G) Hyper Fast Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	SDR621G, SDR620G
Manufacturer	SSDI
File Size	53.06 KB
Description	(SDR620G - SDR622G) Hyper Fast Rectifier
Datasheet	SDR620G_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SDR621G, SDR620G. Please refer to the document for exact specifications by model.

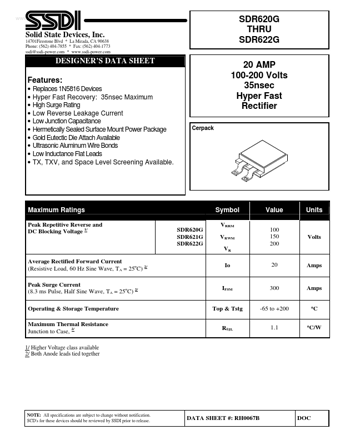

Additional preview pages of the SDR621G datasheet.

Replaces 1N5816 Devices.
Hyper Fast Recovery: 35nsec Maximum.
High Surge Rating.
Low Reverse Leakage Current.
Low Junction Capacitance.
Hermetically Sealed Surface Mount Power Package.
Gold Eutectic Die Attach Available.
Ultrasonic Aluminum Wire Bonds.
Low Inductance Flat Leads.
TX, TXV, and Space Level Screening Available. Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage 1/ SDR620G SDR621.
