SDR7PF (SDR7PF - SDR7TF) FAST RECOVERY RECTIFIER

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com SDR7PF thru SDR7TF Series 7.0 AMP FAST RECOVERY RECTIFIER 1300 ─ 1500 VOLTS 2/ Designer’s Data Sheet Part Number/Ordering Information 1/ SDR9 __ __ __ __ │ │ │ └ Screening │ │ │ __ = Not Screened │ │ │ TX = TX Level │ │ │ TXV = TXV Level │ │ │ S = S Level │ │ │ │ │ └ Package Type __ = Axial Leaded │ │ SMS = Surface Mount Square Ta.

SDR7PF Features

* PIV to 1500 Volts Hermetically Sealed Low Reverse Leakage Current Single Chip Construction Replaces Larger DO-4 Rectifiers Low Thermal Resistance Available in Axial & Square Tab Versions 2/ TX, TXV, and S-Level Screening Available Standard, and Ultra Fast Recovery Versions Available- Contact Factor

SDR7PF Datasheet (162.81 KB)

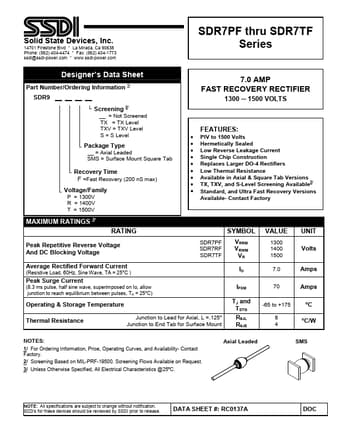

SDR7PF Datasheet Preview — Preview of SDR7PF PDF

Datasheet Details

Part number:

SDR7PF

Manufacturer:

SSDI

File Size:

162.81 KB

Description:

(sdr7pf - sdr7tf) fast recovery rectifier.
