SDR951-61 Datasheet - SSDI

SDR951-61 HYPER FAST RECTIFIER

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com SDR950/61 thru SDR952/61 Designer’s Data Sheet Part Number/Ordering Information 1/ SDR95___ __ __ │ │ └ Screening 2/ ││ __ = Not Screened ││ TX = TX Level ││ TXV = TXV Level ││ S = S Level ││ │ └ Package Type │ /61 = TO-61 └ Device Type ( VRWM ) 0 = 100V 1 = 150V 2 = 200V MAXIMUM RATINGS3/ RATING Peak Repetitive.

SDR951-61 Features

* Hyper Fast Reverse Recovery Time: 35 nsec Max

* High Surge Rating

* Low Reverse Leakage Current

* Low Junction Capacitance

* Hermetically Sealed Package

* Go

SDR951-61 Datasheet (151.40 KB)

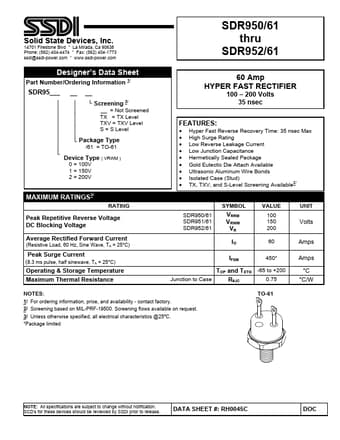

SDR951-61 Datasheet Preview — Preview of SDR951-61 PDF

Datasheet Details

Part number:

SDR951-61

Manufacturer:

SSDI

File Size:

151.40 KB

Description:

Hyper fast rectifier.
