SDR9JF - (SDR9xF) FAST RECOVERY RECTIFIER

SSDI

📥 Download Datasheet

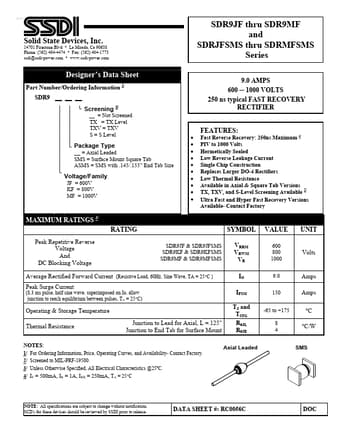

SDR9JF Datasheet Preview — Preview of SDR9JF PDF

datasheet Preview Page 2

Datasheet Details

Part number	SDR9JF
Manufacturer	SSDI
File Size	174.72 KB
Description	(SDR9xF) FAST RECOVERY RECTIFIER
Datasheet	SDR9JF_SSDI.pdf

SDR9JF Product details

Features

Designer’s Data Sheet Part Number/Ordering Information 1/ SDR9 __ __ __ │ │ │ │ │ │ │ │ │ │ └ │ └ Screening 2/ │ __ = Not Screened │ TX = TX Level │ TXV = TXV │ S = S Level │ └ Package Type __ = Axial Leaded SMS = Surface Mount Square Tab ASMS = SMS with .145/.155” End Tab Size Voltage/Family JF = 600V KF = 800V MF = 1000V.
Fast Reverse Recovery: 250ns Maximum 4/ PIV to 1000 Volts Hermeticall.
