SDR9MUFSMS, SDR9JUF (SDR9xUFSMS) ULTRA FAST RECOVERY RECTIFIER

SDR9MUFSMS Description

www.DataSheet4U.com SOLID STATE DEVICES, INC.14830 Valley View Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 ssdi@s.

SDR9MUFSMS Features

* Ultra Fast Recovery: 70 nsec maximum. PIV to 1000 Volts. Low Reverse Leakage Current. Hermetically Sealed. Single Chip Construction. Replaces Larger DO-4 Rectifiers Low Thermal Resistance TX, TXV, and Space Le

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDR9MUFSMS, SDR9JUF. Please refer to the document for exact specifications by model.

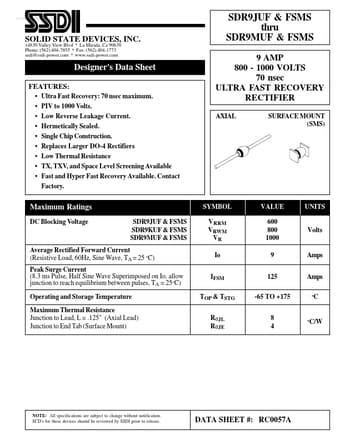

datasheet Preview Page 2

Datasheet Details

Part number
SDR9MUFSMS, SDR9JUF
Manufacturer
SSDI
File Size
68.09 KB
Datasheet
SDR9JUF_SSDI.pdf
Description
(SDR9xUFSMS) ULTRA FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SDR9MUFSMS, SDR9JUF.
Please refer to the document for exact specifications by model.
